VYR-26

AG full-circle sprinkler VYR-26 (Plast. 1/2")

The sprinkler VYR-26 is a low flow sprayer specially designed to operate at different angles and under extreme temperature conditions. This is a  male rotor 1/2" circular farm, made ​​of plastic and has two references. Its axis and springsare made of stainless steel,  and  O-rings  and washers in stainless steel, Teflon and special polycarbonate to withstandcontact with fertilizers more aggressive in the market.
The wide range of plastic nozzles with different colors for easy differentiation,  offer a number of possible combinations. This sprinkler  is designed to work under flow ranges  between 0,4 - 5,5 GPM (168  and 1450 L/H), at pressures  between 1 and  3.5 bar,  with a  coverage range between 66-80 ft. (21-24 m.) of diameter.  The sprinkler VYR-26 can work with one or two nozzles;  The main nozzle has 26° inclination to the horizontal plane  and the secondary  8º.  His average rotation time comes to be approximately 40  sec./rot.  (30 PSI / 2 BAR, 4.40 x2,40mm).
For optimum  uniformity  coefficient, our technicians recommend  using this  with a spacing between sprinkler  heads  and laterals of  33x33 ft. (10x10 m.)  in rectangular frames, or 40x40 ft.  (12x12m.)  in  triangular  frames.
The most common use is for grains such as  wheat, barley or corn, alfalfa, beets,  leafy robust, legumes  and tubers.

Get more information from your nearest distributor

Contact us now

Models

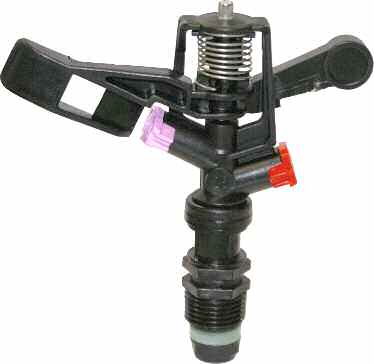

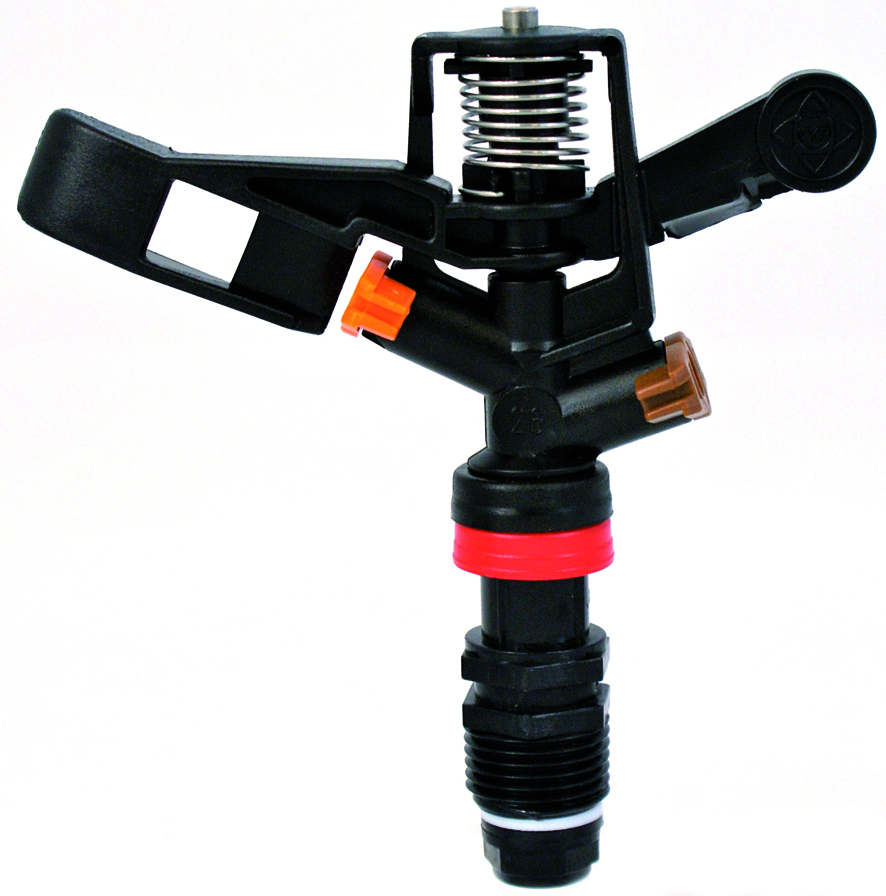

VYR-26 full-circle plastic sprinkler 1/2" MALE w/2 nozzles

  • Weight: 52 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

VYR-26 part-circle plastic sprinkler 1/2" MALE w/2 nozzles

  • Weight: 52 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

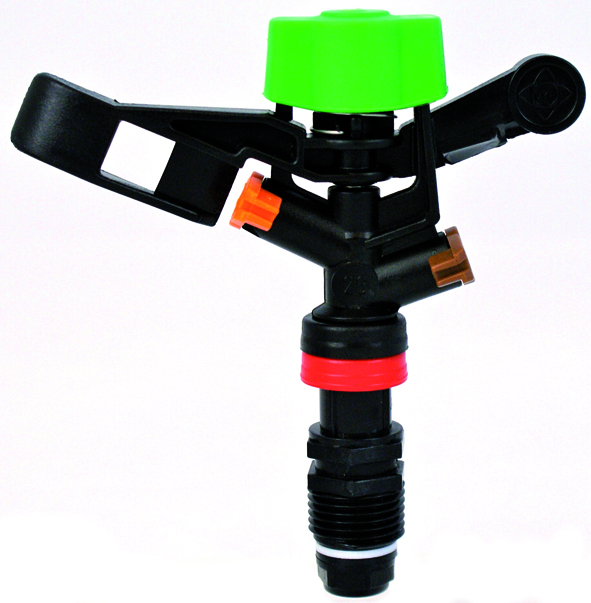

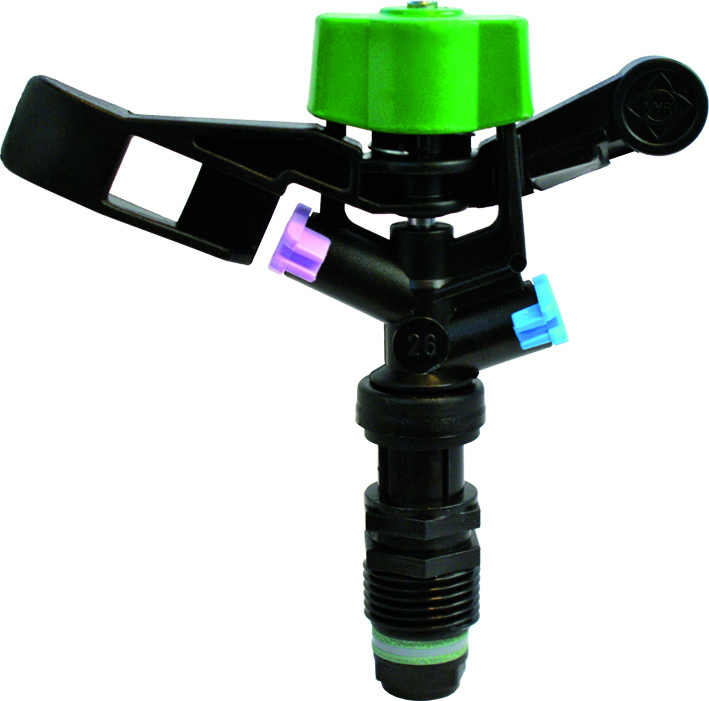

VYR-26 full-circle plastic sprinkler 1/2" MALE w/2 nozzles ANTI-FROST

  • Weight: 51 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

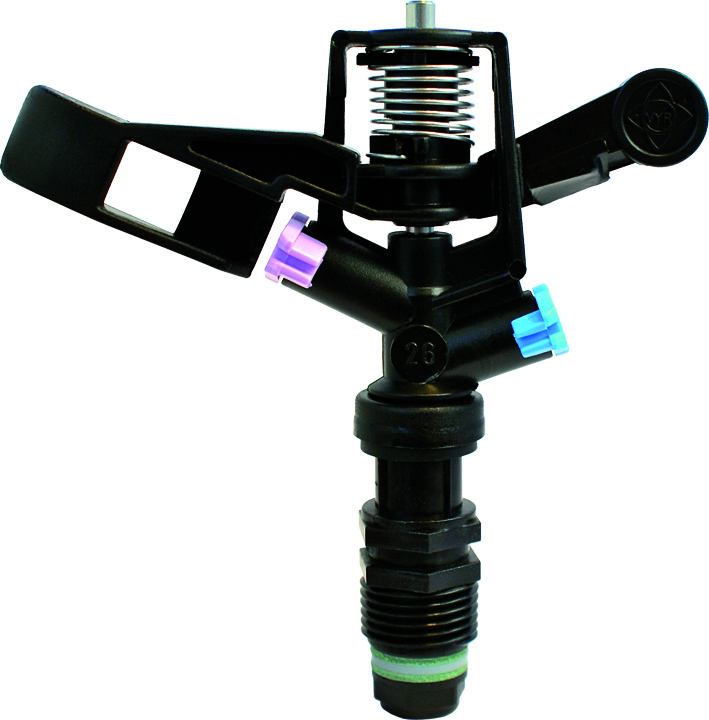

VYR-26 full-circle plastic sprinkler 1/2" MALE w/2 nozzles

  • Weight: 51 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

Specifications

Range distance: 10 - 12 m.
Flow: 168 - 1450 l/h.
Working pressure: 1.5 - 3.5 bar.
Area: Full circle.
Nozzles: Two nozzles, one long range and the other short range (2.5 x 2.5 mm standard).
Trajectory angles: 26o and 18o.
Maximun height of waterjet: 3,0 m.
Uniformity coefficient higher than 90% in areas of 10x10R, 12x10T meters.

Dimensions

  • Height: 12 cm.
  • Width: 12 cm.
  • Weight: 51 gr.
  • Units per box: 300
  • Weight per box: 15 kg.

Applications

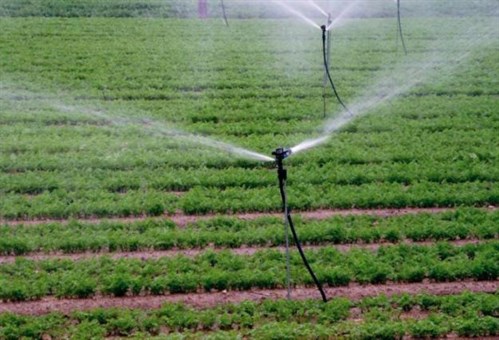

  • Low flow irrigation such as cotton, vegetables, floriculture, strawberry plants, etc.

Features

  • Riser-mounted low flow sprinkler.
  • 1/2” male connection.
  • Made of plastic and stainless steel.
  • High-resistance rotating joints.

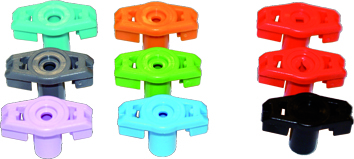

  • Quick-coupling bayonet nozzles, color-coded for easy identification.

Options

  • Threads in BSP or NPT under demand.
  • Standard assembly or with frost protection cover, as requested in the order.
  • Self-compensating flow control valves of 1.5 and 2 bar.

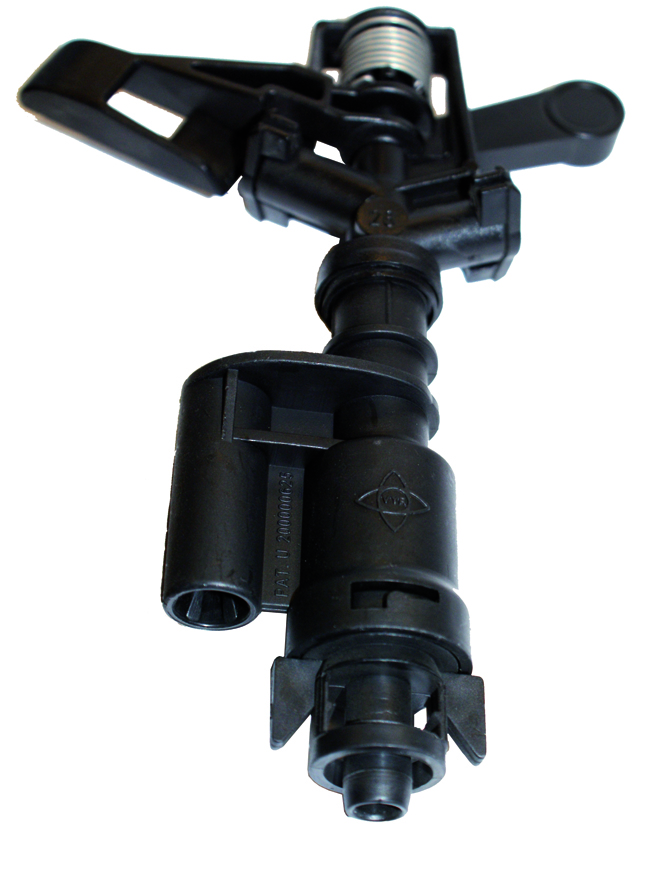

  • Device with “part circle click“ connection to the secondary nozzle to turn this model into a part circle sprinkler.
  • Assembled as a “complete support kit“ on a 1.3 m galvanized stake with microtube and connectors.
