VYR-36

AG full-circle sprinkler VYR-36 (Plast. 3/4")

The model VYR-36 is a sprinkler made ​​of plastic and is considered a medium flow sprinkler with male or female 3/4" connection. With two nozzles, the main 25º and the secondary also 25° but slotted for short radius. These nozzles can be made of brass (recommended by VYR) or nylon plastic. The spoon has a better counterweights injected to drive rotation.

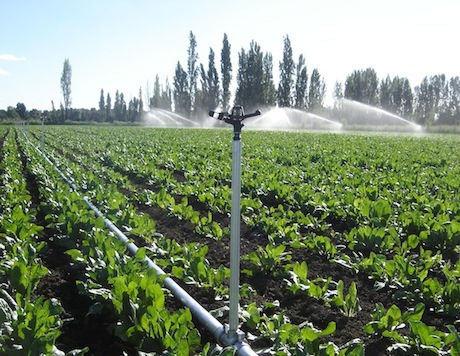

The VYR-36 is one of the most standard sprinklers for irrigation worldwide and is commonly used at 15x18 m. or 18x18 m. frames with 3.5 BAR and working with average flow of 1800 L / h.
It's widely used in all kinds of field crops: cereals, sugar beet, alfalfa, vegetables, etc.

Get more information from your nearest distributor

Contact us now

Models

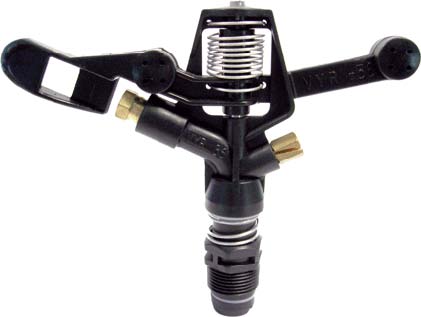

VYR-35 full-circle plastic sprinkler 3/4" MALE w/2 nozzles

  • Weight: 178 gr.
  • Units per box: 100
  • Weight per box: 18 kg.

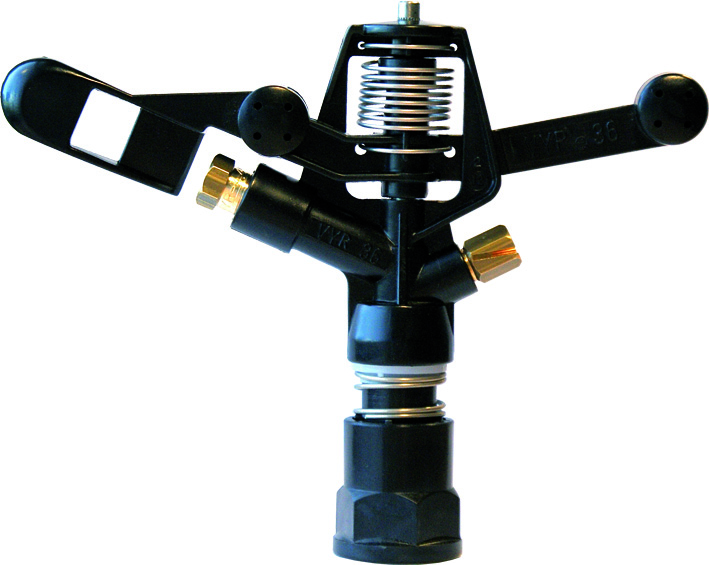

VYR-36 full-circle plastic sprinkler 3/4" FEMALE w/2 nozzles

  • Weight: 170 gr.
  • Units per box: 100
  • Weight per box: 17 kg.

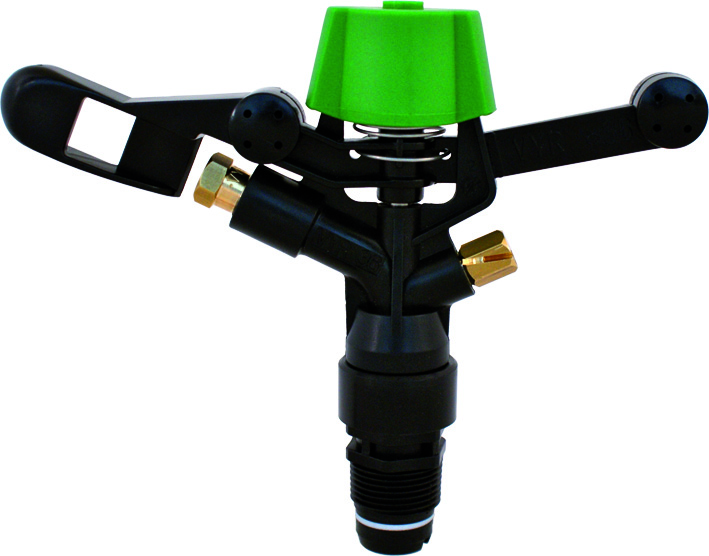

VYR-36 AF full-circle plastic sprinkler 3/4" MALE w/2 nozzles

  • Weight: 190 gr.
  • Units per box: 100
  • Weight per box: 19 kg.

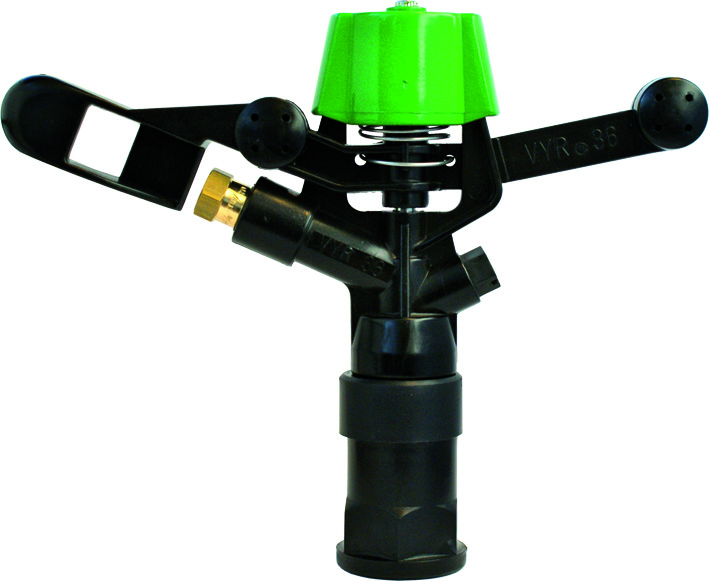

VYR-36 AF full-circle plastic sprinkler 3/4" FEMALE w/2 nozzles

  • Weight: 185 gr.
  • Units per box: 100
  • Weight per box: 19 kg.

Specifications

Range distance: 13 - 18 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.75 - 4.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 25º and 25º.
Maximum stream height: 2.4 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 18x18R, 15x18T, 18x18T meters.

Dimensions

  • Height: 14 cm.
  • Width: 17 cm.
  • Weight: 178 gr.
  • Units per box: 100
  • Weight per box: 18 kg.

Applications

  • This model is compatible with almost any type of crop and with a wide range of pluviometric and spacing conditions, suitable for a large number of different crop types.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Medium flow agricultural impact sprinkler.
  • 3/4" male or female connection.
  • Made of plastic and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 25º and 25º.
  • Used in full coverage irrigation with the best compliance with spacing standards in the market.

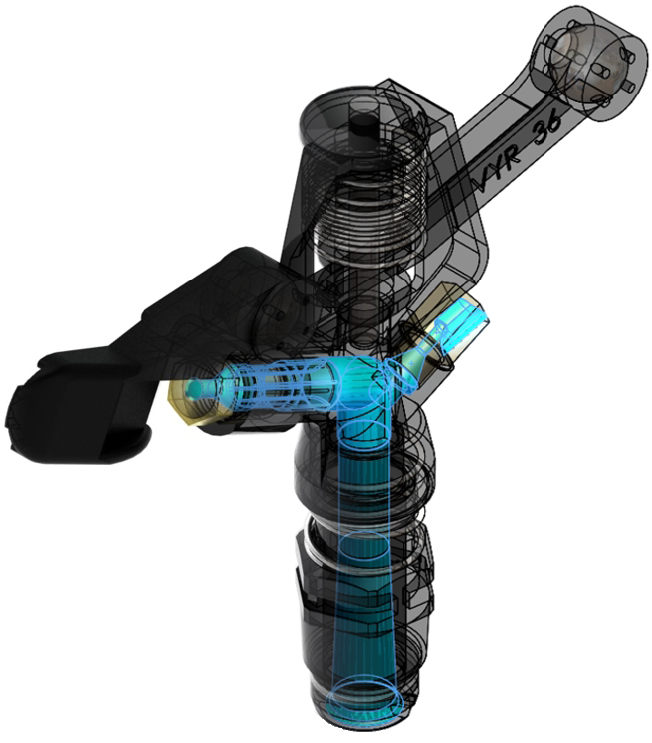

  • Curved design of the internal angles of the body to avoid internal hydraulic turbulence and for greater reach.
  • Stainless steel ball counterweights inserted in the arm.
  • Plastic sprinkler, leader in the agricultural market.

Options

  • Threads in BSP or NPT under demand.
  • Models with anti-frost cover with male or female connection.
  • Brass or plastic nozzles, depending on the customer's technical specifications.
  • Secondary nozzle with deflector slot or plug.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
