VYR-3 12ºW

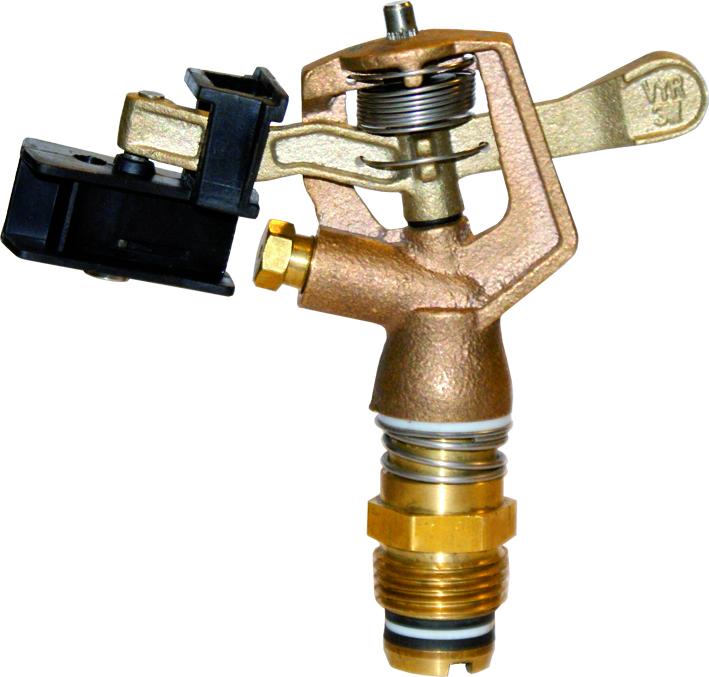

AG full-circle sprinkler VYR-3 12ºW (Brass 1/2") WITH DEFLECTOR NOZZLE

Agricultural low flow impact sprinkler, with low angle and male connection of 1/2". Made of brass and stainless steel. Rotation washers of high resistance. Angle of the nozzle 12º. Models with shovels with bucket or baffle side big step for optimum distribution in the coefficient of uniformity . Ideal for irrigation under trees, irrigation of bananas and other fruit trees.

Get more information from your nearest distributor

Contact us now


VYR-3 W 12º

  • Weight: 0.59 lb.
  • Units per box: 75
  • Weight per box: 42.99 lb.


Range distance: 7 - 10 m.
Flow: 660 - 3270 l/h.
Working pressure: 1.7 - 4.5 bar.
Area: Full circle.
Nozzles: A deflector nozzle.
Trajectory angles: 12º.
Maximum stream height: 1 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 10x10R, 12x10T, 11x11T meters.


  • Height: 5.12 inches
  • Width: 5.51 inches
  • Weight: 0.43 lb.
  • Units per box: 100
  • Weight per box: 42.99 lb.


  • Low flow applications such as horticultural plants, vegetables and fruit trees. Suitable for the irrigation of banana and other tropical fruit trees.


  • Agricultural impact sprinkler with medium-low flow and low angle.
  • 1/2" male connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angle of 12o.
  • Two (2) different arm models: One with a large spoon, and other with a wedge deflector for optimal distribution in its uniformity coefficient.
  • Ideal for irrigation under groves, nut trees, banana trees and other fruit trees.


  • Threads in BSP or NPT under demand.
  • Assembled as a "complete support kit" on a 1.3 m galvanized stake with micro-tube and connectors.
