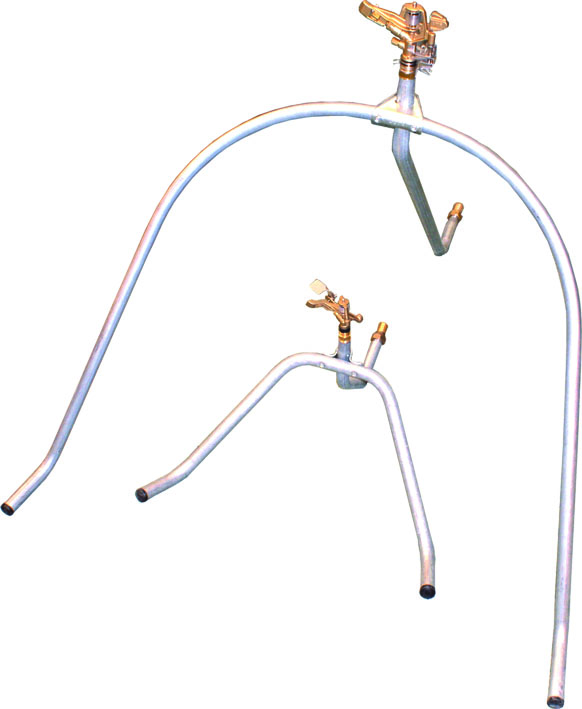

VYR-60 en TRINEO 3/4"

AG Part Circle Sprinkler with galvanized tripod

Part circle impact sprinkler, medium flow.

Get more information from your nearest distributor

Contact us now

Specifications

Reach: 42-60 ft. (13-18 m).
Flow: 175-865 GPH (660- 3270 l/h).
Working pressure: 25-65 PSI (1,75- 4,5 BAR).
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 24º and 12º.
Maximum stream height: 12 ft. (3,8 m).
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 60x60R, 50x60T, 60x60T ft.

Dimensions

  • Height: 16 cm.
  • Width: 18 cm.
  • Weight: 608 gr.
  • Units per box: 25
  • Weight per box: 15.2 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle impact sprinkler, medium flow.
  • 3/4” male or female connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 24º and 12º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with medium flow to cover the side and corner areas.
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Plate with diffuser pin for the main jet.
  • Foldable tripod for mobile installation.
