VYR-601 IRRITURF (3/4")

Pop-Up gear drive rotor V-601

Sprinkler with gear drive technology using water-lubricated gears. Silent irrigation system.

Get more information from your nearest distributor

Contact us now

Models

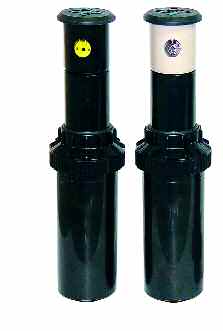

VYR-601

VYR-601 LA


Specifications

Reach: 7 - 15 m.
Flow: 200 - 2,400 l/h.
Working pressure: 3 - 8 bar.
Area: Full or part circle.
Nozzles: A multi-jet nozzle made up of short, medium and long reach jets, with 2 models: standard angle (8 nozzles) and low angle (4 nozzles).
Trajectory angles: 25º standard angle and 12º low angle.
Maximum stream height: 7 m.
Rotation time: 360º between 1 and 4 minutes.
Uniformity coefficient higher than 90% in areas of 12x12R, 14x14T, 14x15T.

Dimensions

  • Height: 19 cm.
  • Width: 7 cm.
  • Weight: 340 gr.
  • Units per box: 20
  • Weight per box: 7 kg.

Applications

  • Series VYR-601 gear drive sprinklers are designed for high performance and durability.
  • They are used in residential, urban or commercial areas.

Features

  • Sprinkler with gear drive technology using water-lubricated gears. Silent irrigation system.
  • 3/4" female connection.
  • Made of delrin plastic and stainless steel.
  • Teflon, steel and rubber rotation joints.
  • Stainless steel spring with continuous tension.
  • Easily adjustable irrigation area because of the internal system of overlapping clips. Depending on the positioning of the "part circle clip  system", this sprinkler has the ability to operate in continuous full circle (360º), or part circle (30º - 360º).
  • Wide range of "water curtain" nozzles with excellent distribution range.
  • Built-in check valve (1.8 m water column).
  • Removable grit filter for maintenance cleaning.
  • Automatic arc memory system in case of tampering.

Options

  • Low angle or standard models (set of nozzles for both).
  • 3/4" 24V micro-valve with built-in filter.
