VYR-803

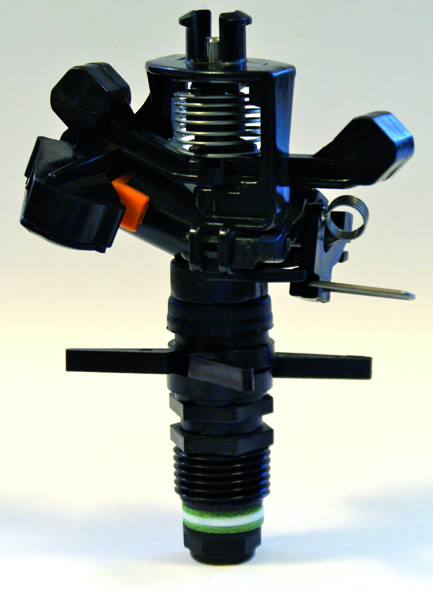

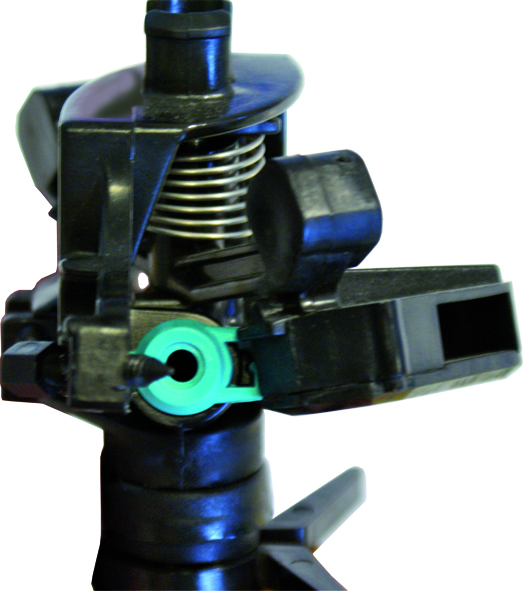

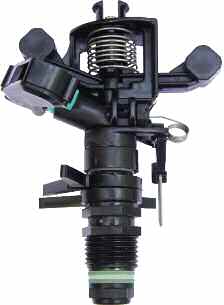

AG part-circle sprinkler VYR-803 (Plast. 1/2")

Riser-mounted plastic impact sprinkler with 1/2" male connection for gardening, horticulture, agriculture, floriculture and greenhouses. Adjustable diffuser pin and an irrigation area system controlled by rotating clips. Adjustable jet breaker diffuser pin. Its versatility and adaptability to all types of gardens make this model one of most common for home gardening. This model is also used in low flow agricultural irrigation systems as a complementary part-circle model to VYR-26 and VYR-16.

Get more information from your nearest distributor

Contact us now

Models

Aspersor de jardin aereo VYR-803

  • Weight: 52 gr.
  • Units per box: 200
  • Weight per box: 15 kg.

Specifications

Range distance: 10 - 13 m.
Flow: 460 - 1,180 l/h.
Working pressure: 1.5 - 4 bar.
Area: Full or part circle.
Nozzles: A bayonet nozzle (color coded).
Trajectory angles: 25º.
Maximum stream height: 2,5 m.
Rotation time: Adjustable. Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 10x10R, 12x12T, 12x13T meters.

Dimensions

  • Height: 12 cm.
  • Width: 13 cm.
  • Weight: 220 gr.
  • Units per box: 100
  • Weight per box: 22 kg.

Applications

  • Public and private gardens.
  • Horticultural plantations, floriculture and fruit trees.

Features

  • Riser-mounted impact sprinkler for gardening, horticulture, agriculture, floriculture and greenhouses.
  • 1/2” male connection.
  • Made of plastic and stainless steel.
  • High-resistance rotating joints.
  • Arm with anti-splash design.
  • Spring tension regulation system.
  • Upper "clip" for positioning inside a casing (VYR-962 AQUAPRO).
  • Adjustable diffuser pin.
  • Irrigation area system controlled by rotating clips.
  • Adjustable jet breaker diffuser pin.
  • Its versatility and adaptability to all types of gardens make this model one of most common for home gardening.
  • This model is also used in low flow agricultural irrigation systems as a complementary part-circle model to VYR-26 and VYR-16.

Options

  • “Compact” Model with quick connection on a 130 cm or 70 cm stake.
  • Special design with a threaded shaft for fitting to the pop-up head VYR-961.
  • Self-compensating flow control valves of 2.5 BAR.
  • Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
  • Assembled as a "complete support kit" on a brass, aluminium or plastic spike.
  • Assembled as a "complete support kit" on an aluminium base.
