VYR-5300

Irrigation Traveler

Carro de riego automático con 120 m. de cable.

Get more information from your nearest distributor

Contact us now

Models

Carro de Riego VYR-5300

  • Weight: 28000 gr.
  • Units per box: 1
  • Weight per box: 33 kg.

Specifications

Diameter Reach: 14 - 18 m.
Flow: 2,250 - 10,800 l/h.
Working pressure: 3.5 - 7.5 bar.
Area: Part or full circle.
Nozzles: According to sprinkler model used!
Trajectory angles: 28º - 30º.
Maximum stream height: 3.5 m.
Speed: 10-20 m/h.

Dimensions

  • Height: 45 cm.
  • Width: 50 cm.
  • Weight: 19000 gr.
  • Units per box: 1
  • Weight per box: 19 kg.

Applications

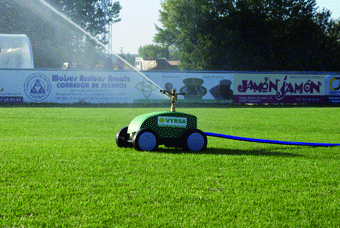

  • Sports fields and flat meadows.

Features

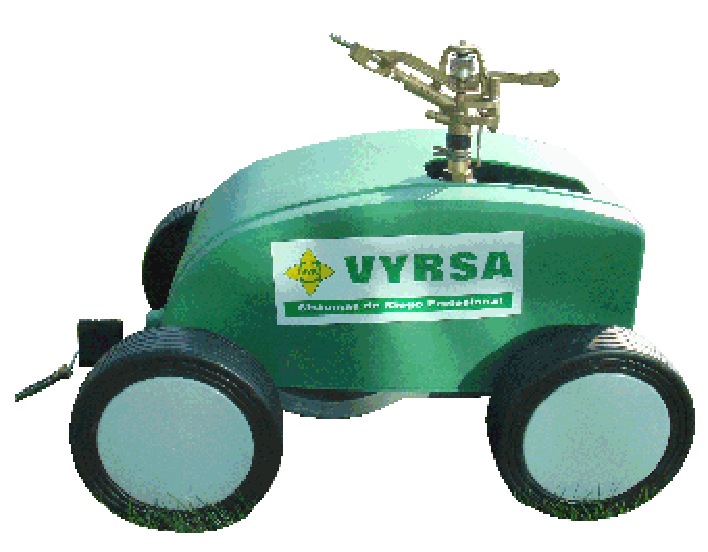

  • Automatic sprinkler cart with 120 m of cable.
  • Connection for 3/4” male or 1” female sprinklers. (SEE SPRINKLER OPTIONS).
  • Automatic shut-off system with safety valve after irrigation has been completed.
  • Made of aluminium, plastic and stainless steel.
  • Used in full coverage irrigation with medium-high flows.

Options

  • Set with built-in sprinkler according to recommended models.
  • Hose for operating on our travelling sprinkler cart VYR-5300.
