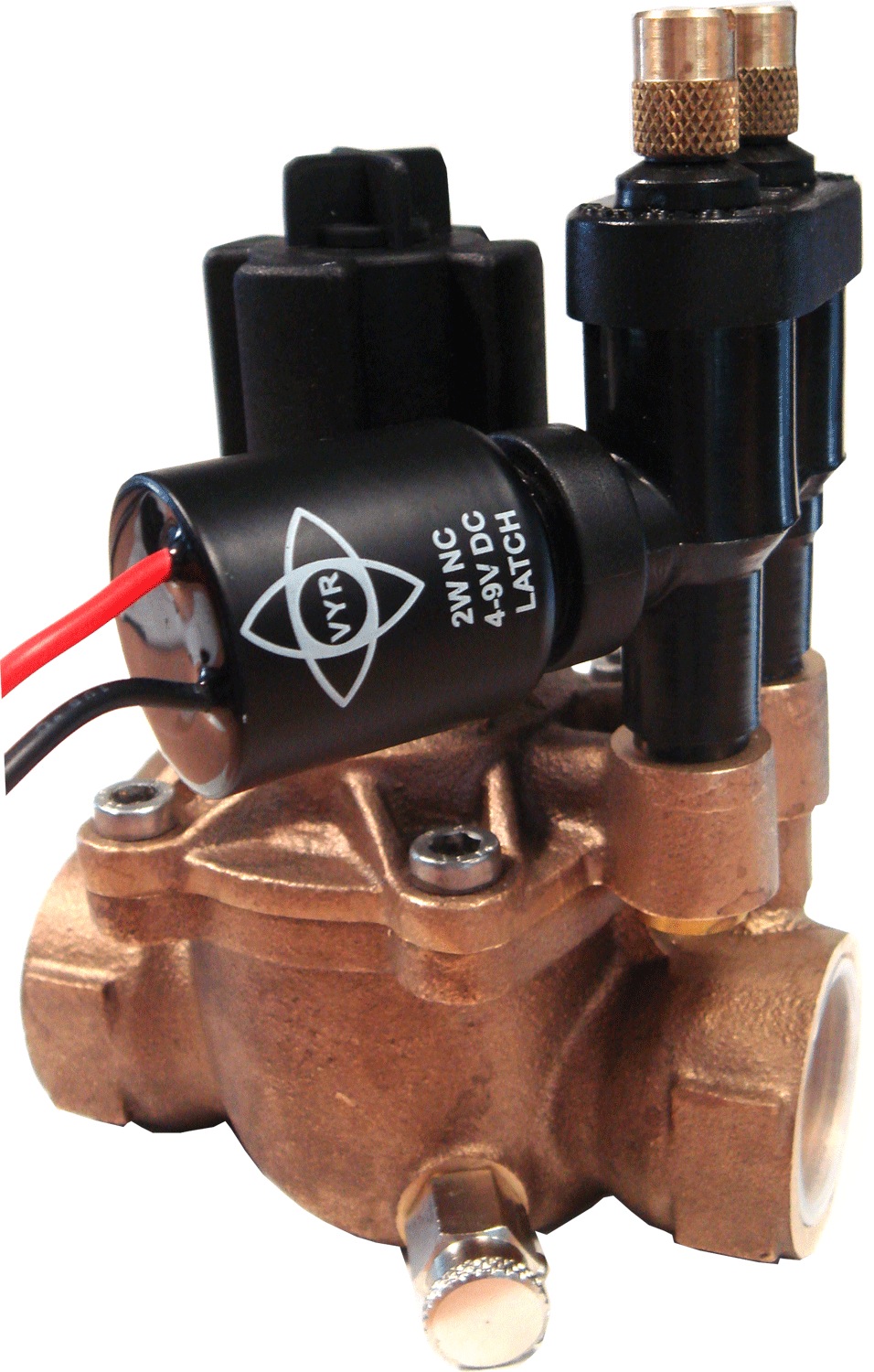

VYR-6160 BRASS

Globe Accurate Solenoid BRASS valves

Valve made of brass and stainless steel. Hi-flow diaphragm and resistant to high pressure.
Manual Steering Kit with 3-way

Get more information from your nearest distributor

Contact us now

Models

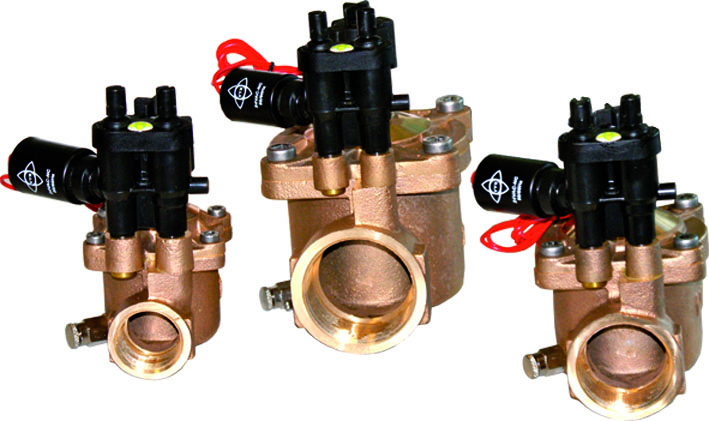

Electro-valv. ALTA PRECISION 1" SOSTENEDOR+REG CAUDAL

  • Weight: 1540 gr.
  • Units per box: 8
  • Weight per box: 12 kg.

Electro-valv. ALTA PRECISION 1 1/2" SOSTENEDOR+REG CAUDAL

  • Weight: 2400 gr.
  • Units per box: 4
  • Weight per box: 10 kg.

Electro-valv. ALTA PRECISION 2" SOSTENEDOR+REG CAUDAL

  • Weight: 3500 gr.
  • Units per box: 4
  • Weight per box: 14 kg.

Specifications

No information available

Dimensions

  • Height: 62 cm.
  • Width: 39 cm.
  • Weight: 190 (1") , 240 (2") gr.
  • Units per box: 20
  • Weight per box: kg.

Applications

  • Gardening residential particular.
  • Industrial uses for fluid control.
  • Drip irrigation and agricultural plants in greenhouses and horticultural facilities.

Features

  • Valve made of brass and stainless steel. Hi-flow diaphragm and resistant to high pressure.
  • Manual Steering Kit with 3-way valve.
  • Kit pressure regulator and sustainer control.
  • Solenoid valve.
  • Flow regulator.
  • Clean permanent filter through the steel mesh incorporated.
  • Assembled with screws and stainless steel spring.
  • reinforced EPDM diaphragm material.
  • Solenoid Series 24 V. ac. (SEE OPTIONS).
  • Working temperature between 2 and 80 degrees.
  • Recommended working pressure of 1 to 10 bars.
  • opening and closing response of 0.5 s.
  • resistance test performed for 25,000 cycles at 15 BAR and 80 degrees.
  • built-in flow control.
  • Flow range between 38 and 240 l / min.
  • Removable from the top to the settlement or replacement of parts
  • Meet the UNE 68-074-86 / ISO 7714 quality standards

Options

  • Pilot Kit Manual
  • pressure regulator kit.
  • solenoid valve 12 V dc
  • solenoid valve 9-12 V dc LATCH

Downloads

This product is not downloaded available
