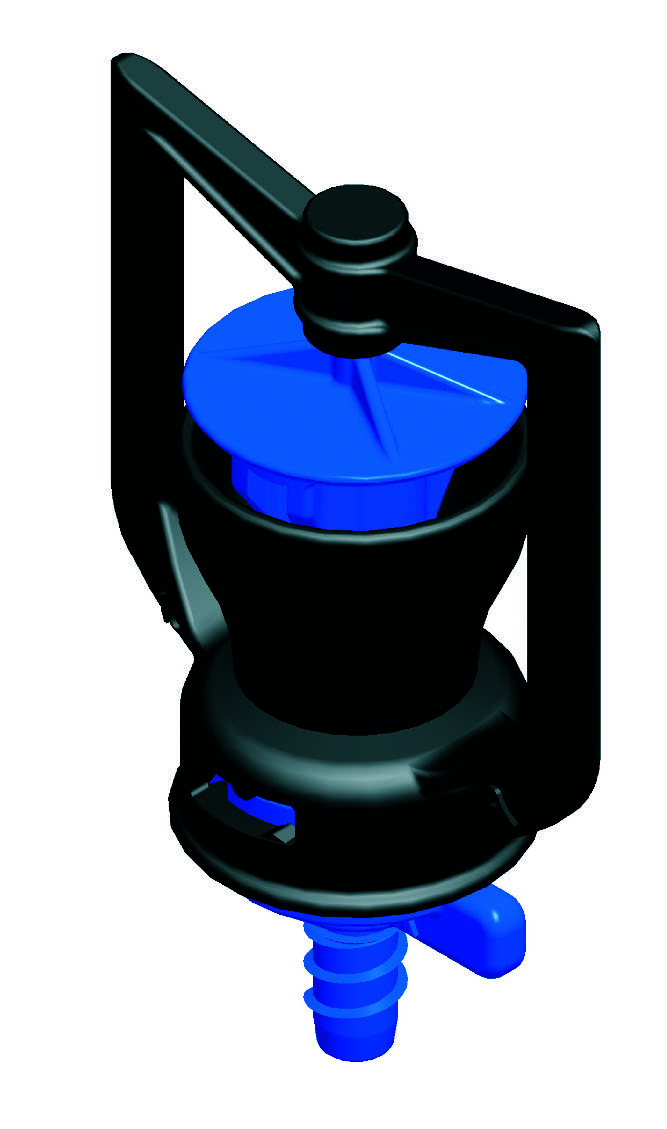

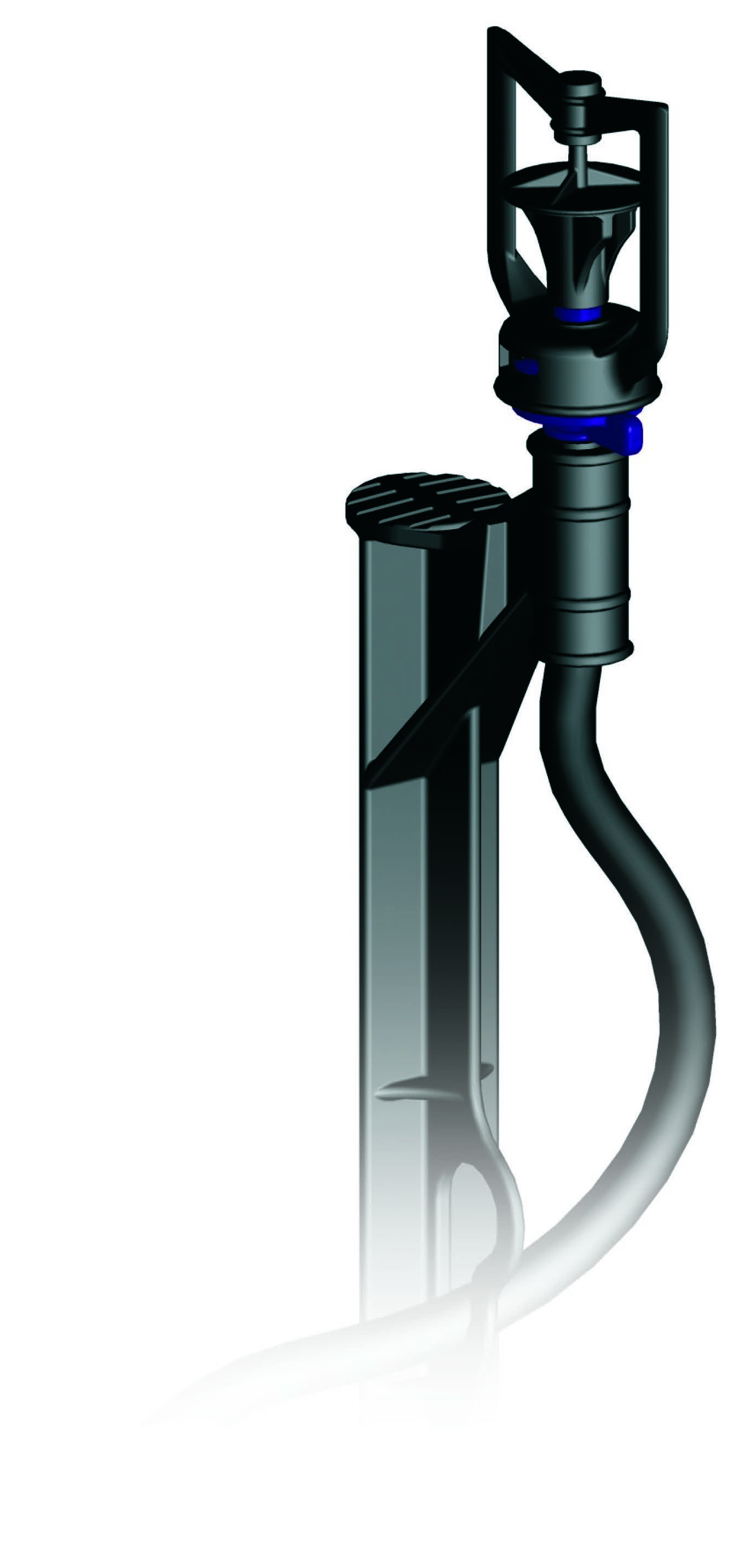

Micro-TWISTER VYR-3000

Micro-sprinkler irrigation for professionals

Modular assembly system. Quick barb and threaded connection. Manufactured in plastic Delrin for durability. Easy maintenance and cleaning. Nozzles in different color codes. Radius of irrigation : 360º. Optional anti-bugs cap.

Get more information from your nearest distributor

Contact us now

Models

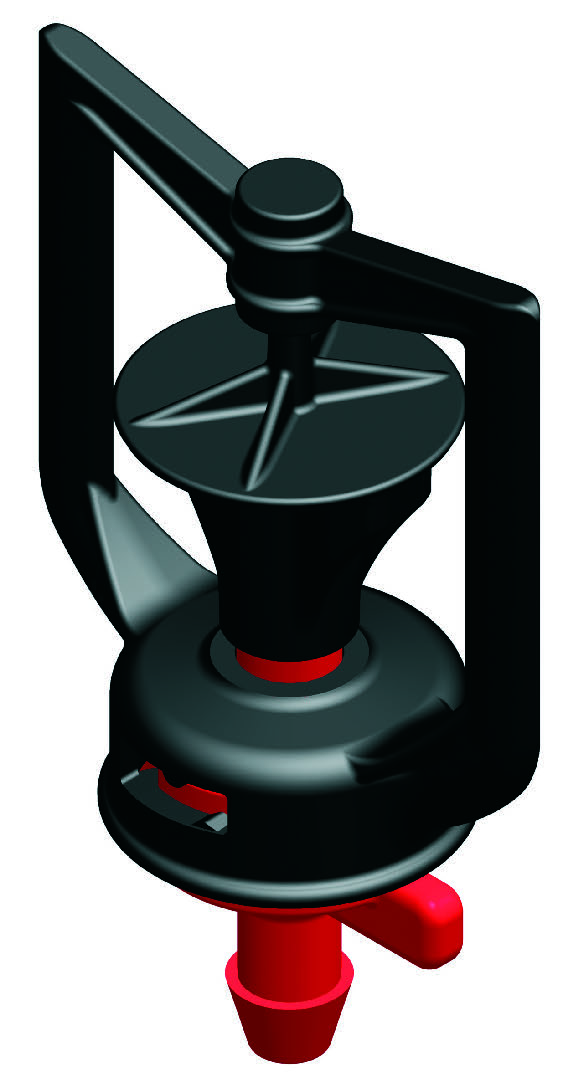

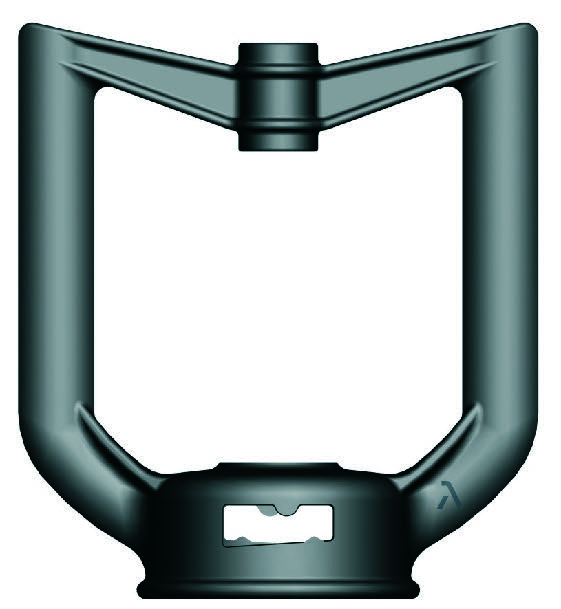

Cuerpo VYR-3000

  • Weight: 225 gr.
  • Units per box: 900

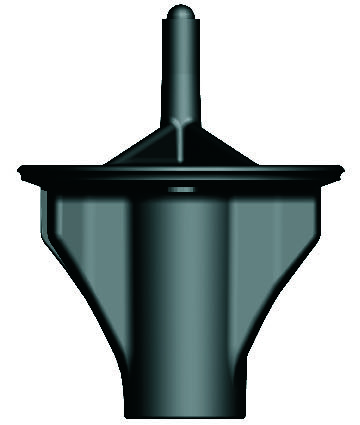

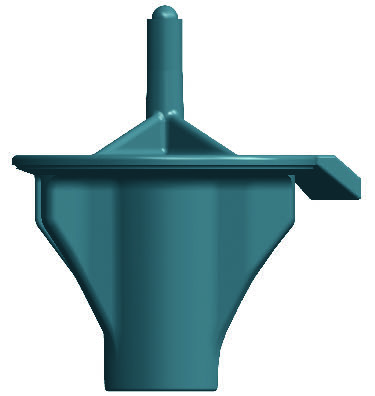

Bailarina NEGRA VYR-3000 largo alcance

  • Units per box: 1800

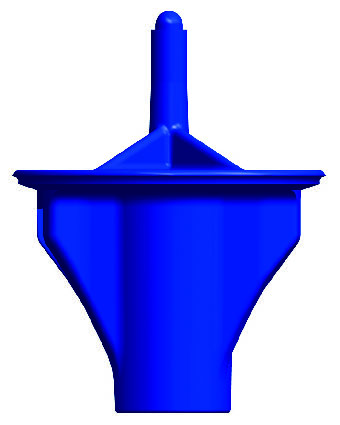

Bailarina AZUL VYR-3000 corto alcance

  • Units per box: 1800

Bailarina GRIS VYR-3000 con deflector

  • Units per box: 1800

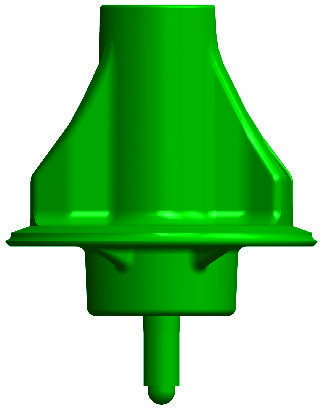

Bailarina VERDE VYR-3000 ángulo invertido

  • Units per box: 1800

Difusor VIOLETA VYR-3000

  • Units per box: 5400

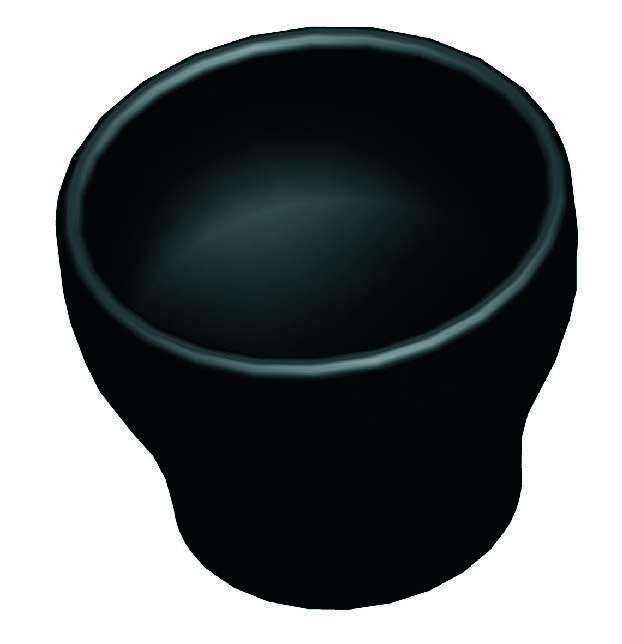

Capuchón Anti-Insectos VYR-3000

  • Units per box: 1800

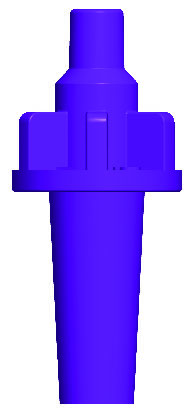

Boquilla espita GRIS VYR-3000

  • Units per box: 1800

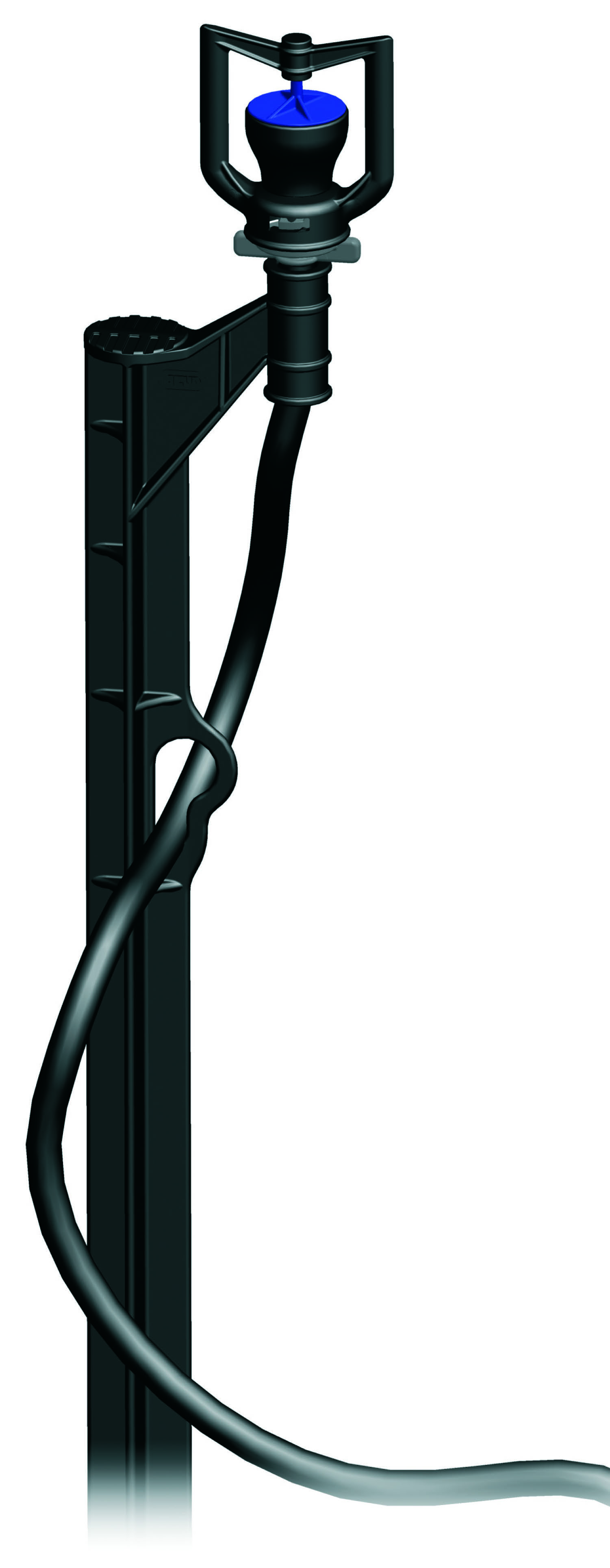

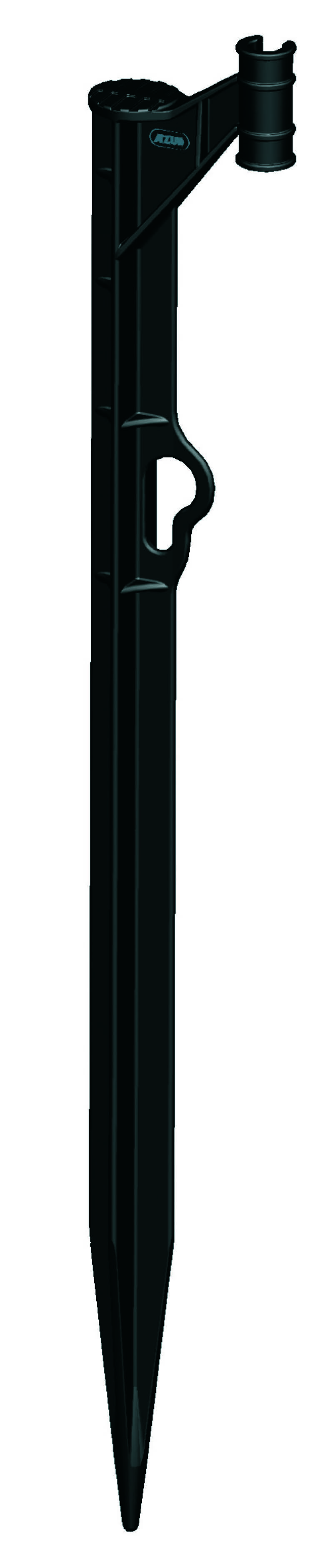

Estaca 40 cm VYR-3000

  • Units per box: 450

Boquilla espita VERDE VYR-3000

  • Units per box: 1800

Boquilla espita MARRÓN VYR-3000

  • Units per box: 1800

Boquilla espita AZUL VYR-3000

  • Units per box: 1800

Specifications

Range: 0,4-8,5 m. Flow: 30 - 160 l/h. AUTO-COMPENSATION OPTIONAL! Working pressure: 1,1 - 3 BAR. Nozzles: De bayoneta con códigos de diferentes colores. Nozzle angle: from 14º to +22º. Maximun jet height: 1,3 m.

Dimensions

No information available

Applications

  • These micro-sprinklers are suitable for undertree irrigation in areas with low pressure and low flow. Its long-range design "wind cutter" makes the spacing between sprinklers to be up to 7 m.

Features

  • Modular assembly system. Quick barb and threaded connection. Manufactured in plastic Delrin for durability. Easy maintenance and cleaning. Nozzles in different color codes. Radius of irrigation : 360º. Optional anti-bugs cap.

Options

  • Ref. 430001: Cuerpo.
  • Ref. 430002: Bailarina Negra, largo alcance.
  • Ref. 430003: Bailarina Azul, corto alcance.
  • Ref. 430004: Bailarina Gris, con deflector.
  • Ref. 430005: Bailarina Verde, invertida.
  • Ref. 430006: Difusor Violeta.
  • Ref. 430007: Capuchón Anti-insectos.

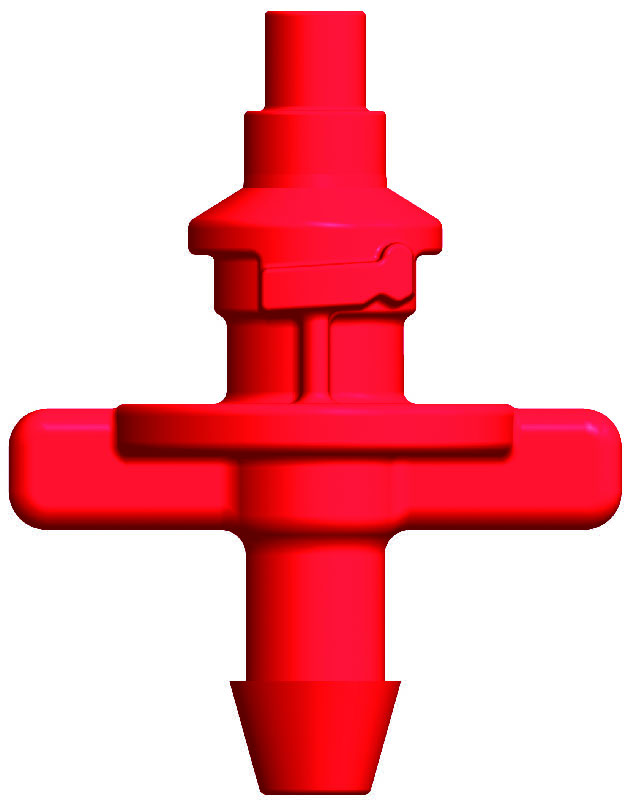

  • Ref. 430120: Boquilla Gris con espita.
  • Ref. 430121: Boquilla Blanca con espita.
  • Ref. 430122: Boquilla Marrón con espita.
  • Ref. 430123: Boquilla Azul con espita.
  • Ref. 430127: Boquilla Negra con espita.
  • Ref. 430124: Boquilla Verde con espita.
  • Ref. 430128: Boquilla Roja con espita.
  • Ref. 430125: Boquilla Amarilla con espita.
  • Ref. 430126: Boquilla Violeta con espita.
  • Ref. 430220: Boquilla Gris con rosca.
  • Ref. 430221: Boquilla Blanca con rosca.
  • Ref. 430222: Boquilla Marrón con rosca.
  • Ref. 430223: Boquilla Azul con rosca.
  • Ref. 430227: Boquilla Negra con rosca.
  • Ref. 430224: Boquilla Verde con rosca.
  • Ref. 430228: Boquilla Roja con rosca.
  • Ref. 430225: Boquilla Amarilla con rosca.
  • Ref. 430226: Boquilla Violeta con rosca.
  • Ref. 430131: Estaca 40 cm.
  • Ref. 430132: Conector doble espita.
  • Ref. 430133: Conector espita y rosca.
  • Ref. 430134: Conector doble rosca.

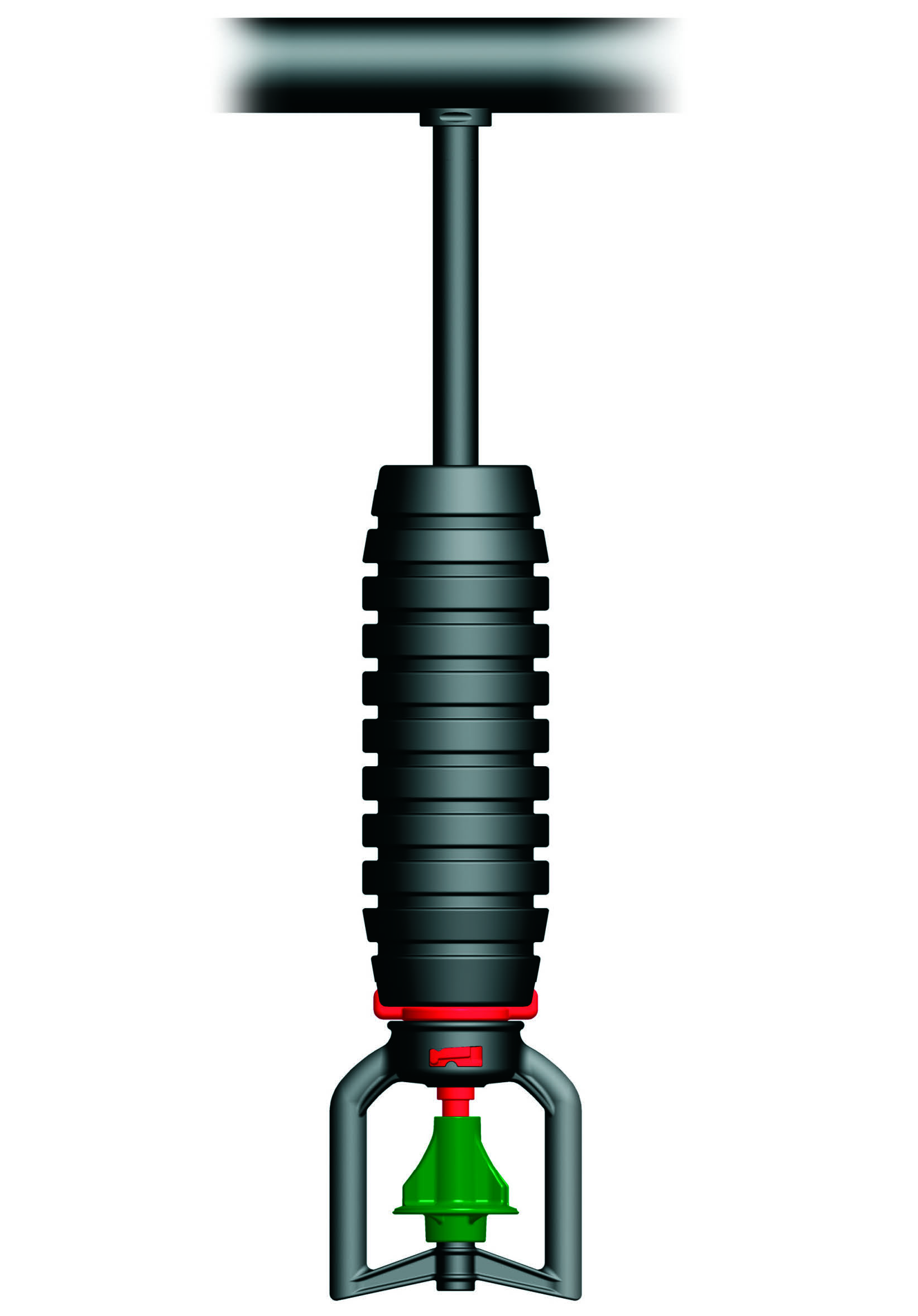

  • Ref. 430135: Contrapeso colgante estabilizador.
  • Ref. 430136: Tubos de 6,5x4,5 mm de 60 cm (1000 metros).
  • Ref. 430506: Válvula auto-comp. 22 L/h PLATA (6 GPH).
  • Ref. 430508: Válv. auto-comp. 30 L/h NARANJA (8 GPH).
  • Ref. 430510: Válvula auto-comp. 38 L/h AZUL (10 GPH).
  • Ref. 430512: Válvula auto-comp. 45 L/h GRIS (12 GPH).
  • Ref. 430514: Válv. auto-comp. 53 L/h VIOLETA (14 GPH).
  • Ref. 430517: Válvula auto-comp. 64 L/h VERDE (17 GPH).
  • Ref. 430520: Válv. auto-comp. 76 L/h AMARILLA (20 GPH).
  • Ref. 430525: Válvula auto-comp. 95 L/h ROJA (25 GPH).
