THREAD Hydraulic METAL Valves VYR-6110

THREAD Hydraulic METAL Valves VYR-6110

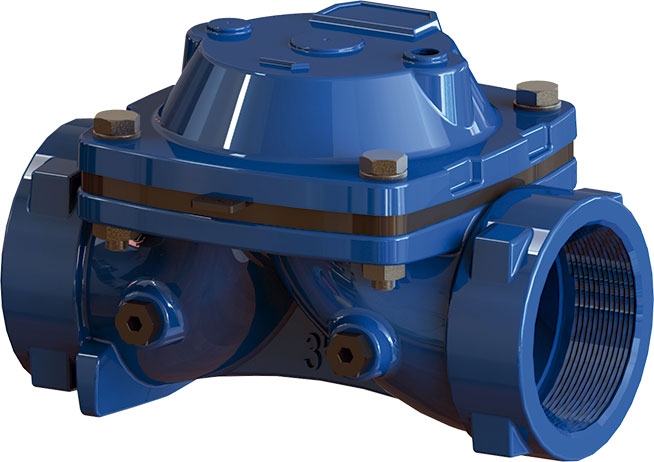

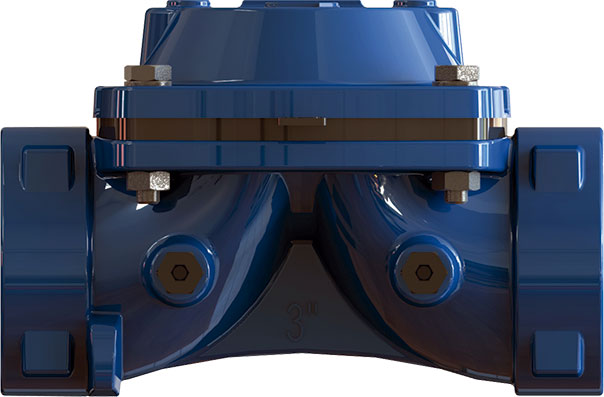

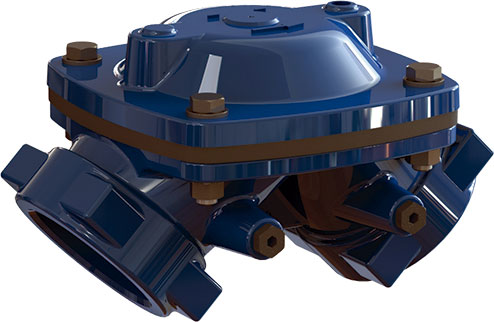

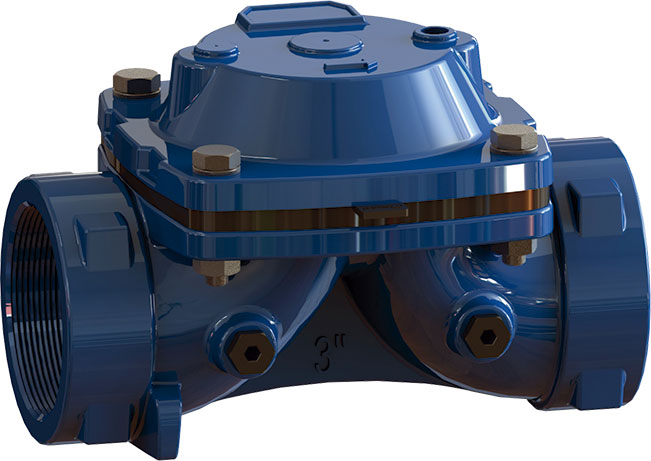

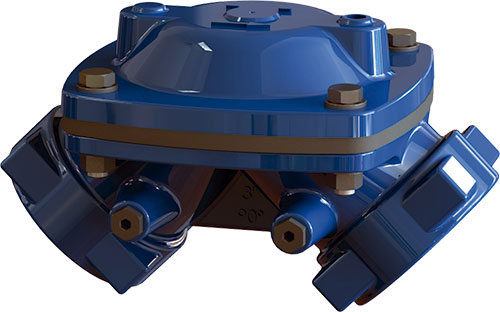

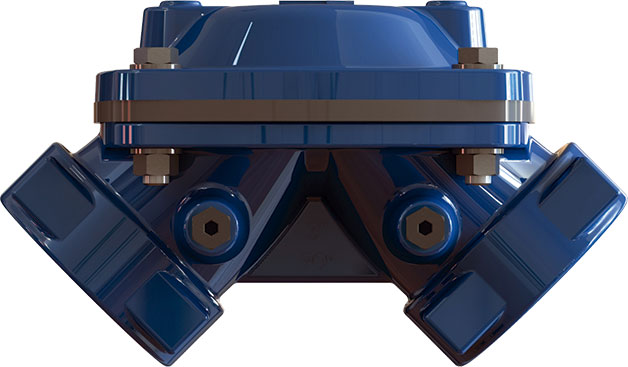

The valve VYR-6110 is a metal hydraulic valve for full flow through elbows and straight sections.

Get more information from your nearest distributor

Contact us now

Models

VALVULA HIDRAULICA 1" BASICA CON ROSCA

VALVULA HIDRAULICA 2" BASICA CON ROSCA

VALVULA HIDRAULICA 3" BASICA CON ROSCA

VALVULA HIDRAULICA 3" BASICA CON ROSCA CODO

  • Weight: 6400 gr.
  • Units per box: 1

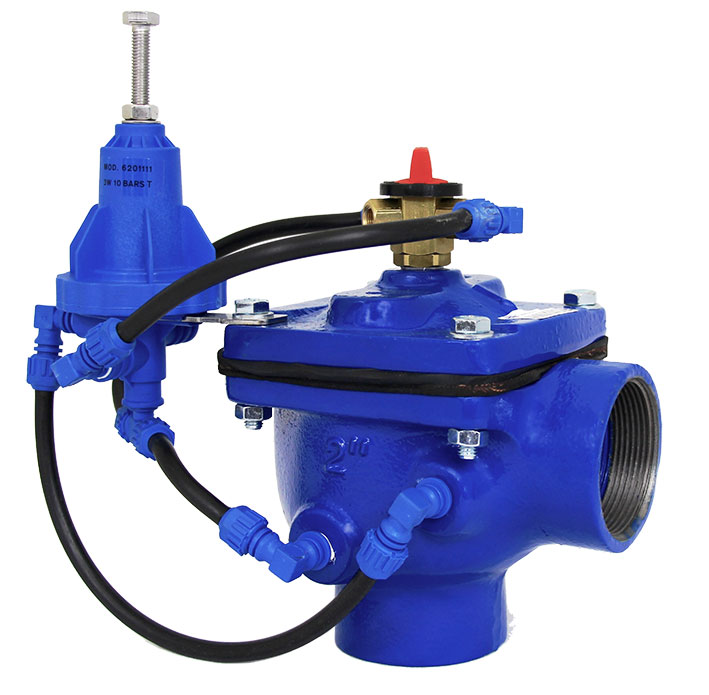

VALVULA HIDRÁULICA 2" BASICA ROSCA CODO

  • Weight: 790 gr.
  • Units per box: 1
  • Weight per box: 8 kg.

VÁLVULA HIDRÁULICA 2 1/2" BASICA ROSCA

  • Weight: 5330 gr.
  • Units per box: 1
  • Weight per box: 5,5 kg.

VÁLVULA HIDRÁULICA 2 1/2" BASICA ROSCA CODO

  • Weight: 5330 gr.
  • Units per box: 1
  • Weight per box: 5,5 kg.

Specifications

No information available

Dimensions

  • Height: cm.
  • Width: cm.
  • Weight: 770 gr.
  • Units per box:
  • Weight per box: kg.

Applications

  • Agricultural irrigation, sports facilities, golf courses, urban and commercial areas.
  • Industrial use for fluid control.
  • Drip irrigation and greenhouses.

Features

  • Metal hydraulic valves for full flow through elbows and straight sections.
  • Body and cover made of high quality cast iron.
  • EPDM diaphragms reinforced with fabric.
  • Always clean because of its brass filter with steel mesh built into all assemblies.
  • Assembled with screws and stainless steel spring.
  • Working temperature between 36-176ºF (2º-80ºC).
  • Recommended working pressure of 15-174 PSI (1-12 BAR).
  • Opening and closing response time of 0.7 seconds.
  • Resistance test carried out for 25,000 cycles at 218ºF and 176ºF (15 BAR and 80ºC).
  • Flow range between 600-3800 GPH (38 y 240 l/min).
  • Removable from the upper section for repair or replacement of parts.
  • Complies with standard UNE 68-074-86/ISO 7714.
