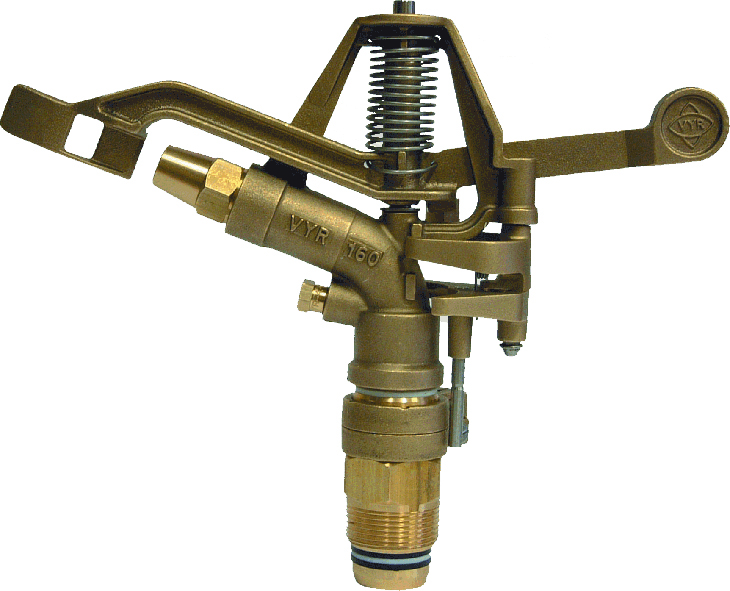

VYR-160

AG Part-circle sprinkler (Brass 1 1/4")

The sprinkler VYR-160 is a part-circle agricultural sprinkler, made of brass with 1 1/4" male connection. Its axis and springs are made of stainless steel, and their O-rings and washers in stainless steel, Teflon and special polycarbonate to withstand contact with the most aggressive fertilizers in the market.
The wide range of brass mouthpieces offer a number of possible combinations among nozzles. This sprinkler is designed to work under some flow ranges between 6200 and 28000 l / h, at pressures between 4 and 7 BAR and cover a range of between 24 and 36 meters in diameter. The main nozzle is 21 ° degree angle to the horizontal plane and the secondary 12. Their average time of rotation comes to be approximately 30 sec. / 360 (3 BAR, 4.40 x2, 40 mm).
For optimum uniformity coefficient, our technicians recommend the use of the sprinkler heads with a spacing between lines and 18x18 meters to 37x37 meters rectangular frames, and 18x18 meters to 40x40 meters triangular frames.
The most common use given is agricultural sprinkler irrigation of cereals such as wheat, barley or corn, alfalfa, beets, leafy vegetables sturdy vegetables and tubers. It is widely used as a spray tip PIVOT

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-160 BRONCE ROSCA 1 1/4"

  • Weight: 2721 gr.
  • Units per box: 5
  • Weight per box: 14 kg.

Specifications

Reach: 24 - 36 m.
Flow: 6,200 - 28,000 l/h.
Working pressure: 4 - 7 bar.
Area: Part or full circle.
Nozzles: One main long reach nozzle and a secondary short reach nozzle.
Trajectory angles: 21º and 12º.
Maximum stream height: 2.3 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 37.5x37.5R, 38x38T, 38x39T meters.

Dimensions

  • Height: 31 cm.
  • Width: 37 cm.
  • Weight: 2721 gr.
  • Units per box: 5
  • Weight per box: 14 kg.

Applications

  • Pivot end points for the longest reach possible.
  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • Part circle agricultural impact sprinkler, high flow.
  • 1 1/4" male connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 21º and 12º.
  • Part circle mechanical system using clips that are very easy and quick to adjust.
  • Used in full coverage irrigation with high flow to cover the side, corner and pivot point areas
  • Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.

Options

  • Threads in BSP or NPT under demand.
  • Foldable tripod for mobile installation.
