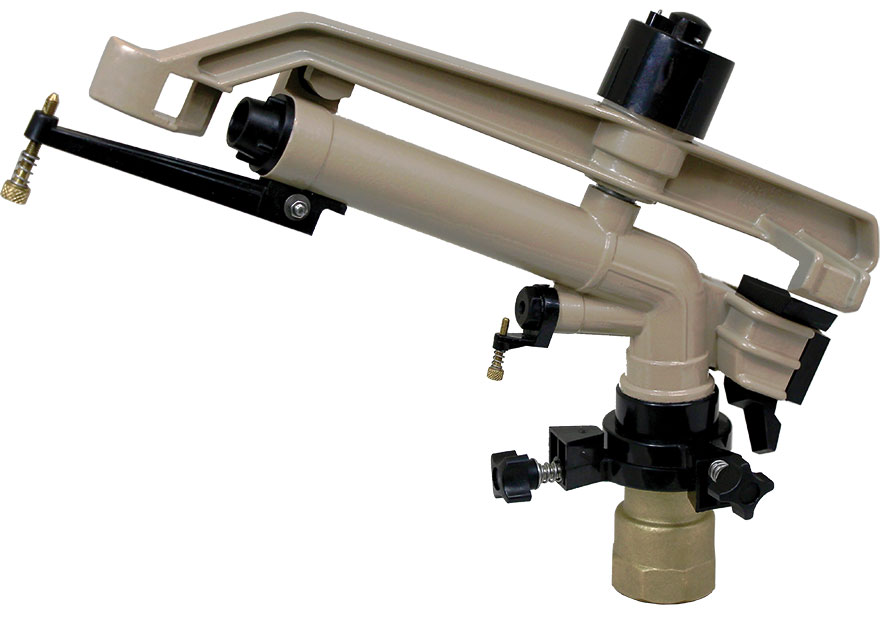

VYR-175

Mini Cañón de 1 1/2"

GENERAL PROPERTIES:
· Agricultural part-circle impact sprinkler with medium-high flow.
· Female brass connection of 1 1/2”
· Made of aluminium, plastic and stainless steel.
· High-resistance rotating joints.
· High resistance brass nozzles.
· Angle of coverage: 360º or Part-Circle.
· Difuser pins and deflactor plates included.
TECHNICAL SPECIFICATIONS:
· Reach: 20 - 35 m / 66 - 115 ft.
· Flow: 9.000 - 33.000 L/H. / 2.376 - 8.712 GPH.
· Working pressure: 2,5 - 6 BAR / 36 - 87 PSI.
· 2 Nozzles: One main nozzle with optional deflector pin, and a second short range with built-in difuser pin nozzle.
· Trajectory angles: Of 27º and 18º.
· Maximum stream height: 5,7 m / 19 ft.
APPLICATIONS:
· Used in all types of agricultural irrigation, generally with medium-high flows.
· Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
MEASUREMENTS :
· Height: 34 cm / 13,4 in.
· Width: 42 cm / 16,5 in.
· Weight: 2 kg/ 4,4 Lbs.
· Units per box: 4
OPTIONS :
· Tripods of 1 1/2”
· Valve for automatization.

Get more information from your nearest distributor

Contact us now

Models

VYR-175

  • Weight: 2430 gr.
  • Units per box: 5
  • Weight per box: 13 kg.

Specifications

TECHNICAL SPECIFICATIONS:
· Reach: 20 - 35 m / 66 - 115 ft.
· Flow: 9.000 - 33.000 L/H. / 2.376 - 8.712 GPH.
· Working pressure: 2,5 - 6 BAR / 36 - 87 PSI.
· 2 Nozzles: One main nozzle with optional deflector pin, and a second short range with built-in difuser pin nozzle.
· Trajectory angles: Of 27º and 18º.
· Maximum stream height: 5,7 m / 19 ft.
MEASUREMENTS :
· Height: 34 cm / 13,4 in.
· Width: 42 cm / 16,5 in.
· Weight: 2 kg/ 4,4 Lbs.
· Units per box: 4

Dimensions

No information available

Applications

  • APPLICATIONS:
  • · Used in all types of agricultural irrigation, generally with medium-high flows.
  • · Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.

Features

  • GENERAL PROPERTIES:
  • · Agricultural part-circle impact sprinkler with medium-high flow.
  • · Female brass connection of 1 1/2”
  • · Made of aluminium, plastic and stainless steel.
  • · High-resistance rotating joints.
  • · High resistance brass nozzles.
  • · Angle of coverage: 360º or Part-Circle.
  • · Difuser pins and deflactor plates included.

Options

  • OPTIONS :
  • · Tripods of 1 1/2”
  • · Valve for automatization.
