VYR 19 HI-FLOW

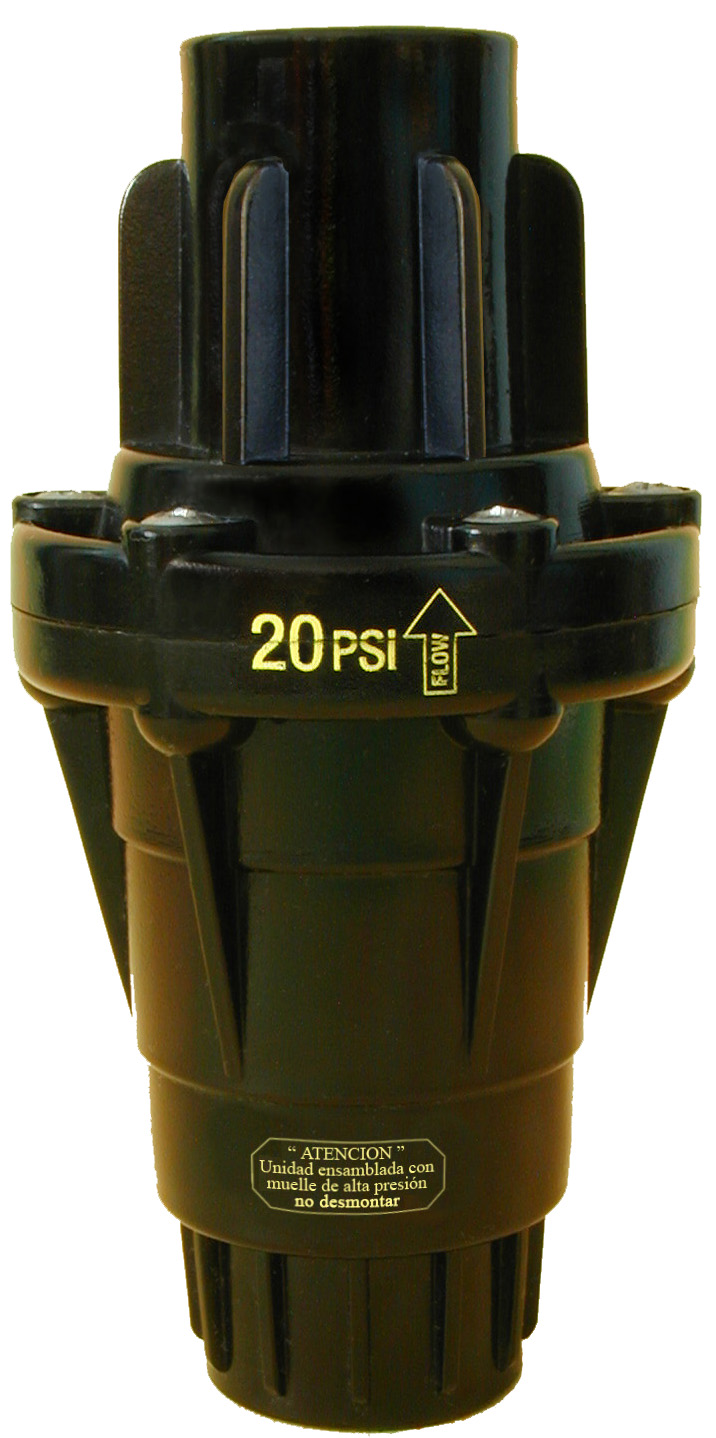

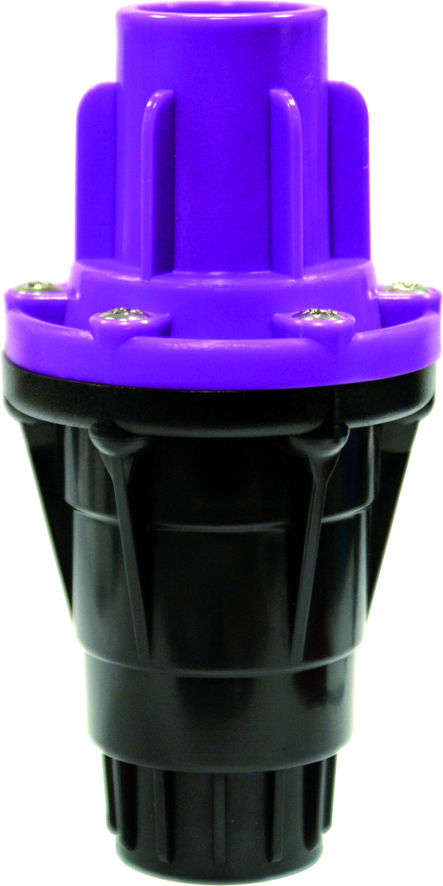

Pressure Regulator VYR-19 Hi-Flow

Pressure regulators for agricultural and landscape use: made of nylon 6.6, polypropylene, rubber and stainless Steel.

Get more information from your nearest distributor

Contact us now

Models

Pressure Regulator VYR-19 10 PSI

Pressure Regulator VYR-19 20 PSI

Pressure Regulator VYR-19 6 PSI

  • Weight: 130 gr.
  • Units per box: 50
  • Weight per box: 6,5 kg.

Pressure Regulator VYR-19 25 PSI

  • Weight: 130 gr.
  • Units per box: 50
  • Weight per box: 6,5 kg.

Pressure Regulator VYR-19 40 PSI

  • Weight: 130 gr.
  • Units per box: 50
  • Weight per box: 6,5 kg.

Pressure Regulator VYR-19 50 PSI

  • Weight: 130 gr.
  • Units per box: 50
  • Weight per box: 6,5 kg.

Specifications

No information available

Dimensions

  • Height: 13,8 cm.
  • Width: 6,9 cm.
  • Weight: 197 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

Applications

  • PIVOT, drip irrigation systems, sprinkler irrigation systems and industry.

Features

  • Pressure regulators for agricultural and landscape use VYR-19 HPR.
  • Made of nylon 6.6, polypropylene, rubber and stainless steel.
  • The design, with cross-sectional and longitudinal reinforcements, makes this range of pressure regulators one of most resistant on the market
  • against high pressures and water hammer.
  • Thread EXTRA-LARGE 3/4" H X 3/4" H (BSP).
  • Stainless Steel spring High quality with continuous and homogeneous forcé.
  • Flow of 528-1320 GPH (2-5 m3/h).
  • Maximum working pressure of 174 PSI (12 BAR).

Downloads

This product is not downloaded available
