VYR-19 FPR

Fixed pressure regulator

Pressure regulators for agricultural and landscape use; made of nylon 6.6, polypropylene, rubber and stainless steel.

Get more information from your nearest distributor

Contact us now

Models

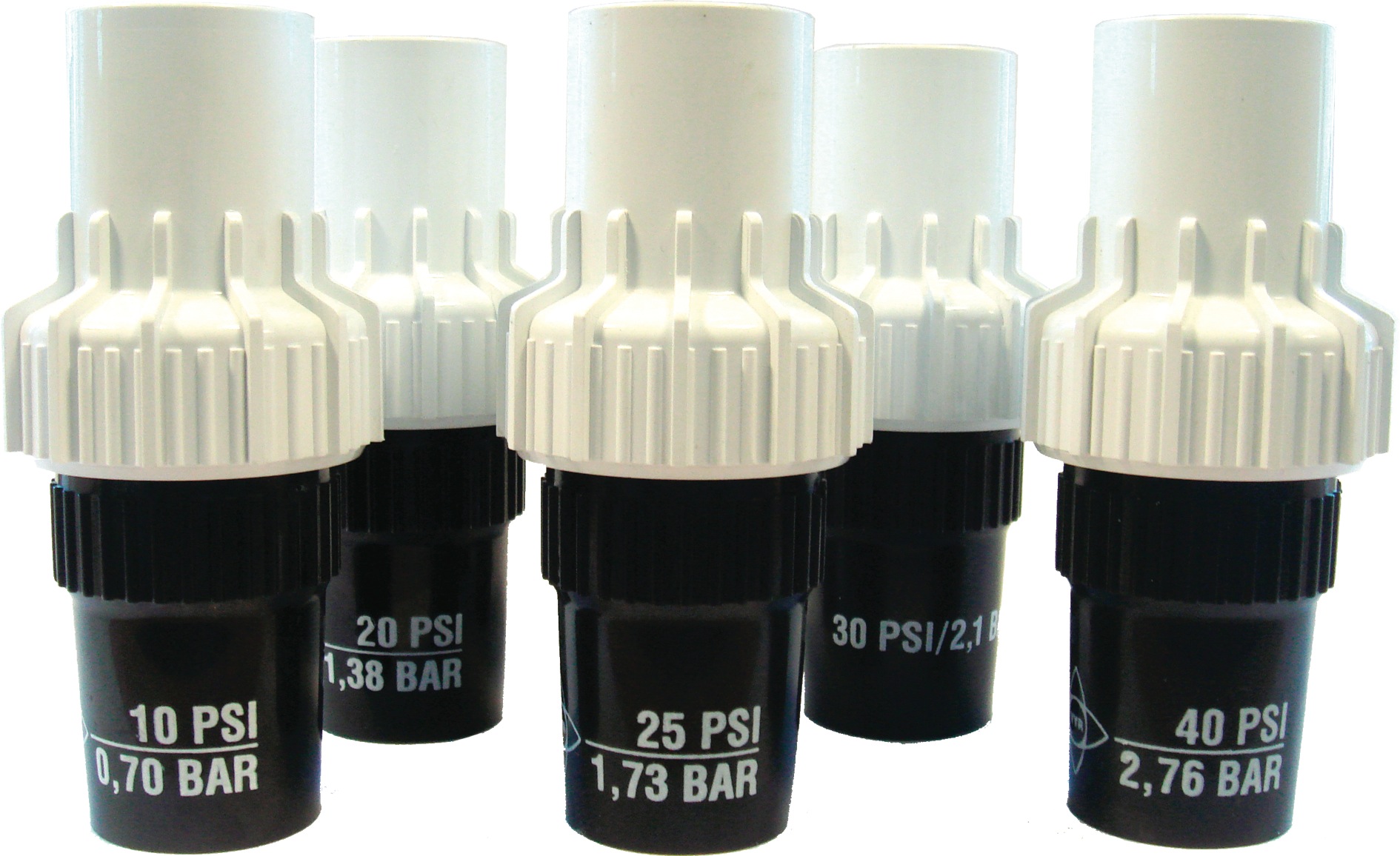

VYR-19 FIX PRESSURE REGULATOR 10 PSI

VYR-19 FIX PRESSURE REGULATOR 20 PSI

VYR-19 FIX PRESSURE REGULATOR 25 PSI

VYR-19 FIX PRESSURE REGULATOR 30 PSI

VYR-19 FIX PRESSURE REGULATOR 40 PSI

VYR-19 FIX PRESSURE REGULATOR 50 PSI


Specifications

No information available

Dimensions

  • Height: 11,5 cm.
  • Width: 5,3 cm.
  • Weight: 105 gr.
  • Units per box: 50
  • Weight per box: 5 kg.

Applications

  • Pivots, drip irrigation, sprinkler irrigation, industrial uses.

Features

  • Pressure regulators for agricultural and landscape use.
  • Made of nylon 6.6, polypropylene, rubber and stainless steel.

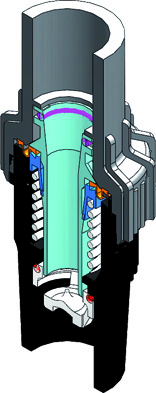

  • The design, with cross-sectional and longitudinal reinforcements, makes this range of pressure regulators one of most resistant on the market against high pressures and water hammer.
  • Thread 3/4" F x 3/4" F (BSP).
  • Stainless steel spring, high quality with continuous and uniform strength.
  • Flow of 0.10 to 3 m3/h.
  • Maximum working pressure: 12 bar.

Options

  • Kit con pivot sprayer.
  • Kit con electro-válvula 1" y filtro en Y de malla.

Downloads

This product is not downloaded available
