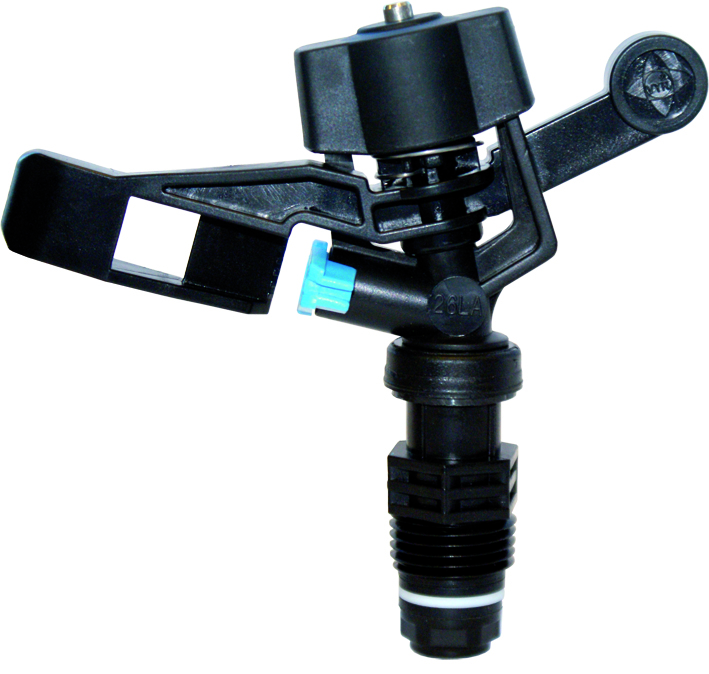

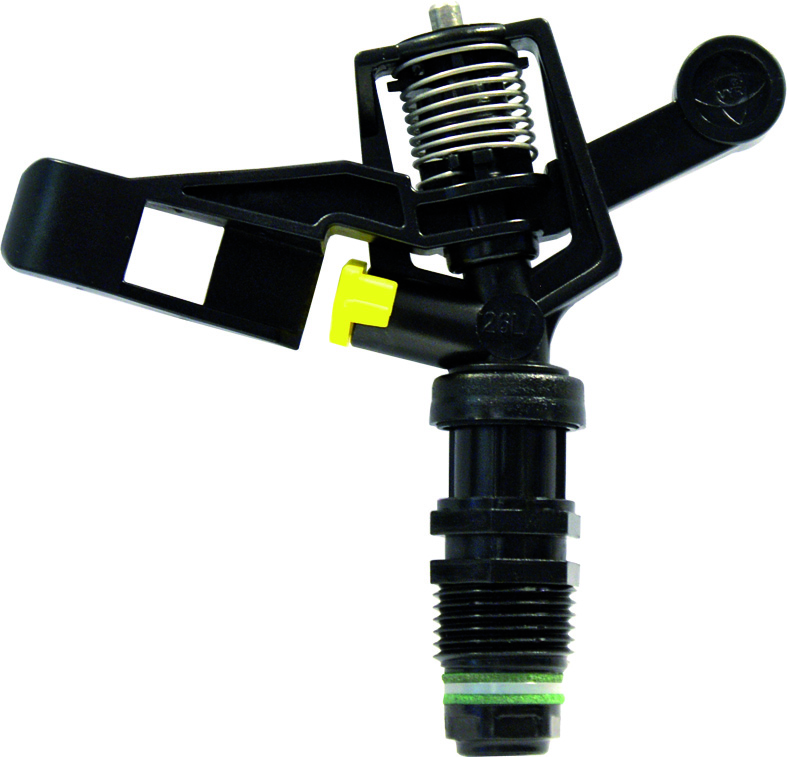

VYR-26 LA

Specifications

Reach: 8 - 10 m.
Flow: 345 - 990 l/h.
Working pressure: 1.5 - 3.5 bar.
Area: Full circle.
Nozzles: one nozzle, one long range (2 - 3.6 mm).
Trajectory angles: 14o.
Maximun height of waterjet: 1,6 m (low angle).
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 8x8R, 8x10T meters.

Dimensions

• Height: 16 cm.
• Width: 12 cm.
• Weight: 65 gr.
• Units per box: 250
• Weight per box: 16 kg.

Applications

• Low flow irrigation such as banana, cotton, vegetables, floriculture, strawberry plants, etc.
• Ideal in areas where the user prefers to take the sprinkler sets home once irrigation is complete, thanks to its quick coupling connection design.

Features

• Riser-mounted low flow sprinkler, one nozzle and low angle.

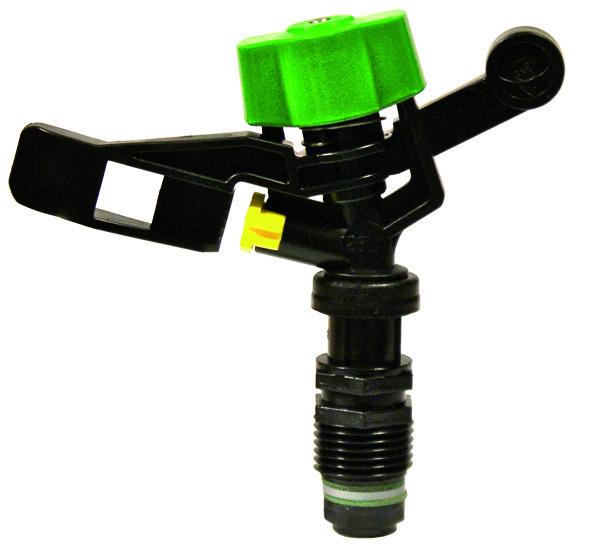

• Model with cover for FROST PROTECTION.
• Made of plastic and stainless steel.
• High-resistance rotating joints.
• Quick-coupling bayonet nozzles, color-coded for easy identification.

Options

• Threads in BSP or NPT under demand.
• Standard assembly or with frost protection cover, as requested in the order.
• Assembled on “Agro-Stand“ with a 1.3 m galvanized stake with micro-tube and connectors.

Downloads

• Recomendacion de marcos VYR.pdf
