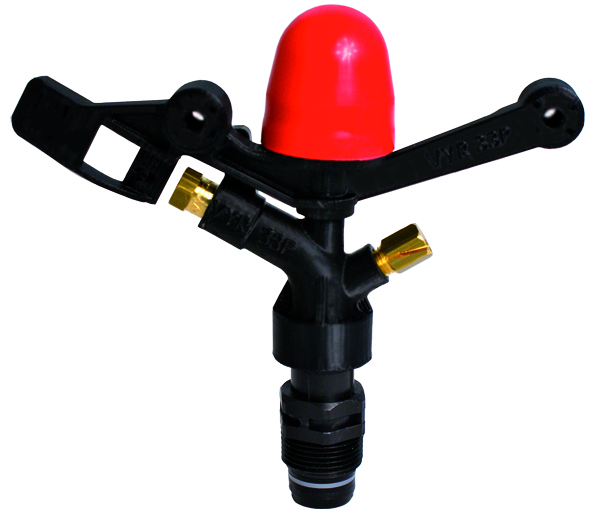

VYR-33P

Frost-Protection Sprinkler V-33P

Medium flow agricultural impact sprinkler with ANTI-FROST protection cover and  3/4” male connection.

Get more information from your nearest distributor

Contact us now

Models

VYR-33P M

  • Weight: 490 gr.
  • Units per box: 50
  • Weight per box: 10 kg.

Specifications

Range distance: 10 - 13.50 m.
Flow: 900 - 2920 l/h.
Working pressure: 2.5 - 6.5 bar.
Area: Full circle.
Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
Trajectory angles: 25º and 30º.
Maximum stream height: 3.7 m.
Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 17x17R, 18x18T and 19x17T meters.

Dimensions

  • Height: 15 cm.
  • Width: 17 cm.
  • Weight: 190 gr.
  • Units per box: 50
  • Weight per box: 9.5 kg.

Applications

  • Horticultural plantations, cereals, tubers, leguminous plants and fruit trees. Designed to work in ANTI-FROST conditions.

Features

  • Medium flow agricultural impact sprinkler.
  • ANTI-FROST protection cover.
  • 3/4” male connection.
  • Made of SPECIAL PLASTIC and stainless steel.
  • High-resistance rotating joints.
  • Nozzle angles of 25º and 30º.
  • Special design for ANTI-FROST irrigation using materials resistant to extreme conditions.

Options

  • Threads in BSP or NPT under demand.
  • Models with short arm with male connection.
  • Brass or plastic nozzles, depending on the customer's technical specifications.
  • Secondary nozzle with deflector slot or plug.
  • Assembled on a pressure regulator for self-compensation of pressure and flow.
