VYR-39 TRI-FUNCTIONAL

Air release valves TRI-FUNCTIONAL (Automatic)

Triple Effect Air Release Valve (glass fiber to extract and impel air from and into irrigation systems).

Get more information from your nearest distributor

Contact us now

Models

VYR 39 TRI-FUNCTIONAL

  • Weight: 247 gr.
  • Units per box: 20
  • Weight per box: 5 kg.

VYR 39 TRI-FUNCTIONAL 1"

  • Weight: 247 gr.
  • Units per box: 20
  • Weight per box: 5 kg.

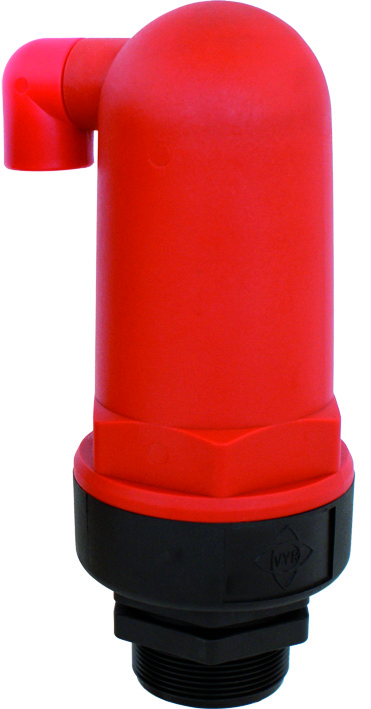

AIR RELEASE VALVE TRIFUNCTIONAL VYR-39 2"

  • Weight: 310 gr.
  • Units per box: 18
  • Weight per box: 14 kg.

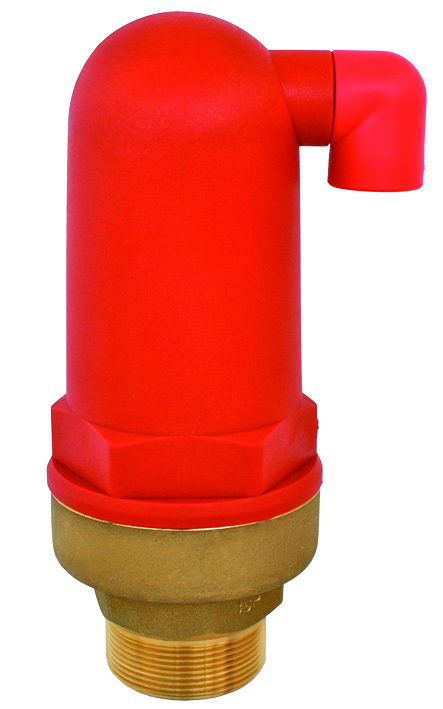

AIR RELEASE VALVE TRIFUNCTIONAL VYR-39 2" Brass Base

  • Weight: 1200 gr.
  • Units per box: 18
  • Weight per box: 21,6 kg.

Air Release Valve VYR 39 1" M TRI-FUNCTIONAL Brass Base

  • Weight: 650 gr.
  • Units per box: 20
  • Weight per box: 13 kg.

Specifications

Made of nylon 6.6 and reinforced with 30% fiberglass.
Sealing gasket, rubber and polystyrene float.
Male Thread 2" BSP or NPT.
Swivel female elbow with 1/2" thread and anti-insects inner screen.

Dimensions

  • Height: 25 cm.
  • Width: 10 cm.
  • Weight: 860 y 1250 (latón/brass) gr.
  • Units per box: 10
  • Weight per box: 8,6 y 12,5 (latón/brass) kg.

Applications

  • Drip irrigation systems, sprinkler irrigation systems and industry.

Features

  • Double or triple action kinetic air valves to extract and impel air from and into irrigation systems.
  • Made of nylon 6.6 and reinforced with 30% fibreglass. Rubber closure gasket and polystyrene float.
  • Operating range of 0.2 to 15 bar.
  • Continuous operation.
  • Automatic effect.
  • Extracts more than 500 m3/h of air on filling the installation, without the valve closing through absence of air.
  • Extraction of more than 45 m3/h of air in installations with hydraulic pressures of 4 bar.

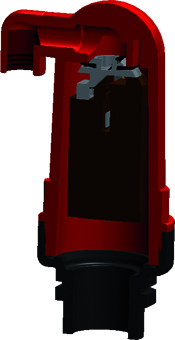

  • It extracts the air from the installation while the pipelines are filling. When the water reaches the inside of the valve, the float
  • rises and closes the discharge outlet.
  • It provides automatic control, eliminating any residual air pockets from reaching the valve. This causes the float to drop, partially or totally opening the discharge outlet. The system pressure does not prevent this function from being carried out.
  • (ONLY IN TRIPLE FUNCTION VALVES)
  • It prevents the pipes from collapsing due to pressure decrease when the system is emptied. As the system is being emptied, the float drops and opens the seal, allowing air to enter the pipe.
