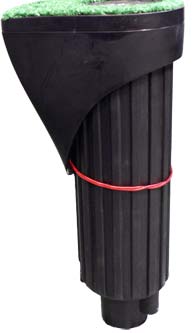

VYR-650 L GREEN-KEEPER (1 1/2")

Specifications

Scope: 18.5 - 32 m.
Flow: 3500 - 23,000 l/h.
Working pressure: 3 - 8 bar.
Area: Full or part circle.
Nozzles: A multi-jet nozzle made up of short, medium and long reach jets, with 6 models from 5.2 mm to 14 mm (9 mm standard).
Trajectory angles: 30º.
Maximum stream height: 5 m.
Rotation time: 360º between 1 and 4 minutes (adjustable)
Uniformity coefficient higher than 90% in areas of 28x28R, 30x30T, 30x35T.

Dimensions

• Height: 38 cm.
• Width: 16 cm.
• Weight: 3800 (sin válvula) y 5400 (con válvula) gr.
• Units per box: 2
• Weight per box: kg.

Applications

• The "GOLF" SPORT series gear drive sprinklers are designed for high performance and durability. HIGH ENERGY SAVING!
• They are used mainly for sports facilities such as football and rugby fields, golf courses, etc. They are also suitable for large urban parks and large residential and commercial areas.

Features

• SPORT sprinkler with gear drive technology using waterlubricated gears. Silent irrigation system.
• Models with built-in electrically operated valve (12 VDC, 24 VAC, LATCH or hydraulic).
• Reinforced threads with brass rings inserted.
• 1" female connection (without valve) and 1 1/2” (with valve).
• Made of plastic, brass and stainless steel.
• Teflon, steel and rubber rotation joints.
• Stainless steel spring with continuous tension.
• Irrigation area easily adjustable from the cover.
• Wide range of "water curtain" nozzles with excellent distribution reach.
• Built-in check valve (8.8 m water column).
• Removable grit filter for maintenance cleaning.
• Automatic arc memory system in case of tampering.

Options

• Swing pipes for network connection.
• Maintenance tools.
