VYR-80 S

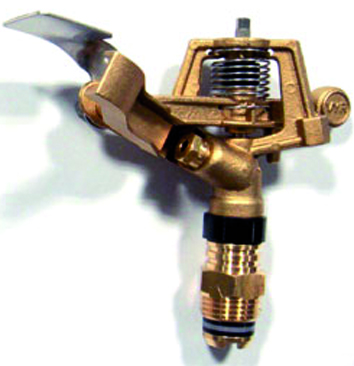

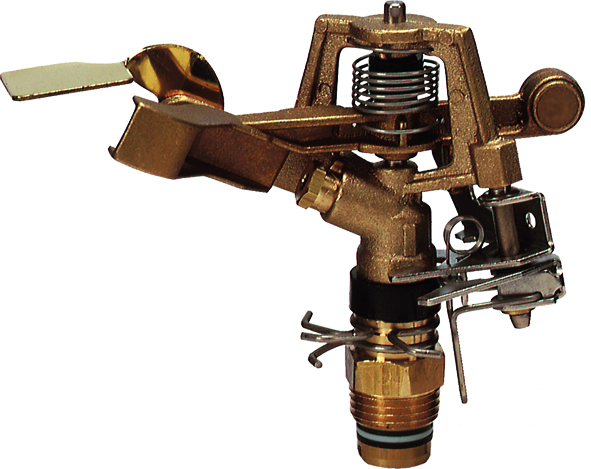

AG part-circle sprinkler VYR-80 S (Brass 1/2")

Riser-mounted impact sprinkler with 1/2” male connection for gardening, agriculture, flower growing and greenhouses.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-80 LATON CIRC. DEFLECTOR ROSCA 1/2

  • Weight: 0.57 lb.
  • Units per box: 75
  • Weight per box: 50.71 lb.

ASP VYR-80 LATON SECT. DEFLECTOR ROSCA 1/2

  • Weight: 0.59 lb.
  • Units per box: 75
  • Weight per box: 46.30 lb.

Specifications

Range distance: 9 - 14 m.
Flow: 460 - 1,180 l/h.
Working pressure: 1.5 - 4 bar.
Area: Full or part circle.
Nozzles: A multi-jet nozzle.
Trajectory angles: 24º.
Maximum stream height: 2,6 m.
Rotation time: Adjustable. Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 11x11R, 12x12T, 12x13T

Dimensions

  • Height: 5.51 inches
  • Width: 4.72 inches
  • Weight: 0.59 lb.
  • Units per box: 75
  • Weight per box: 20 kg kg.

Applications

  • Public and private gardens.
  • Horticultural plantations, floriculture and fruit trees.

Features

  • Riser-mounted impact sprinkler for gardening, agriculture, flower growing and greenhouses.
  • 1/2” male connection.
  • Made of brass and stainless steel.
  • High-resistance rotating joints.
  • Arm with anti-splash design.
  • Adjustable deflector plate.
  • Irrigation area system controlled by rotating clips.
  • Adjustable jet breaker diffuser pin.
  • This sprinkler is strong and durable enough to work for many years in urban gardens in tough conditions, caused by vandalism and impact from maintenance equipment.

Options

  • Special design with a threaded shaft for fitting to the VYR-961 pop-up head.
  • Self-compensating flow control valves of 1.5 and 2 bar.
  • Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
  • Assembled as a "complete support kit" on a brass, aluminium or plastic spike.
  • Assembled as a "complete support kit" on an aluminium base.
