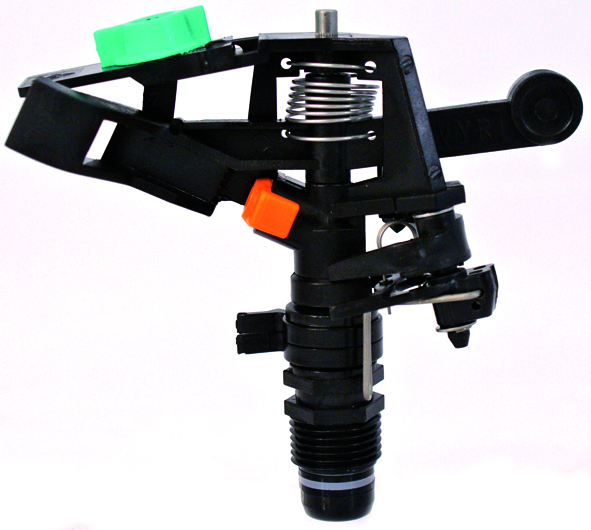

VYR-802

AG part-circle sprinkler VYR-28 (Plast. 1/2")

Full or part-circle 1/2" plastic impact sprinkler for gardening, agriculture, floriculture and greenhouses. Made of plastic, brass and stainless steel with high-resistance rotating joints. Arm with anti-splash design and an adjustable deflector plate. Riser-mounted impact sprinkler for gardening, agriculture, floriculture and greenhouses.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-802 PLASTICO SECT. PALA PLASTICO, ROSCA 1/2" M P. ANTI.

  • Weight: 75 gr.
  • Units per box: 150
  • Weight per box: 12 kg.

ASP VYR-802 PLASTICO CIRC. PALA PLASTICO ROSCA 1/2

  • Weight: 80 gr.
  • Units per box: 150
  • Weight per box: 12 kg.

ASP VYR-802 PLASTICO CIRC. PALA LATON ROSCA 1/2

  • Weight: 103 gr.
  • Units per box: 150
  • Weight per box: 17 kg.

ASP VYR-802 PLASTICO SECT. PALA LATON ROSCA 1/2

  • Weight: 108 gr.
  • Units per box: 150
  • Weight per box: 17 kg.

Specifications

Reach: 10 - 13 m.
Flow: 460 - 1,180 l/h.
Working pressure: 1.5 - 4 bar.
Area: Full or part circle.
Nozzles: A multi-jet nozzle.
Trajectory angles: 25º.
Maximum stream height: 2,5 m.
Rotation time: Adjustable. Depending on the pressure and the nozzles, the rotation will be constant and continuous.
Uniformity coefficient higher than 90% in areas of 10x10R, 12x12T, 12x13T.

Dimensions

  • Height: 12 cm.
  • Width: 13 cm.
  • Weight: 220 gr.
  • Units per box: 100
  • Weight per box: 22 kg.

Applications

  • Public and private gardens.
  • Horticultural plantations, floriculture and fruit trees.

Features

  • Riser-mounted impact sprinkler for gardening, agricultura,floriculture and greenhouses.
  • 1/2” male connection.
  • Made of plastic, brass and stainless steel.
  • High-resistance rotating joints.
  • Arm with anti-splash design.

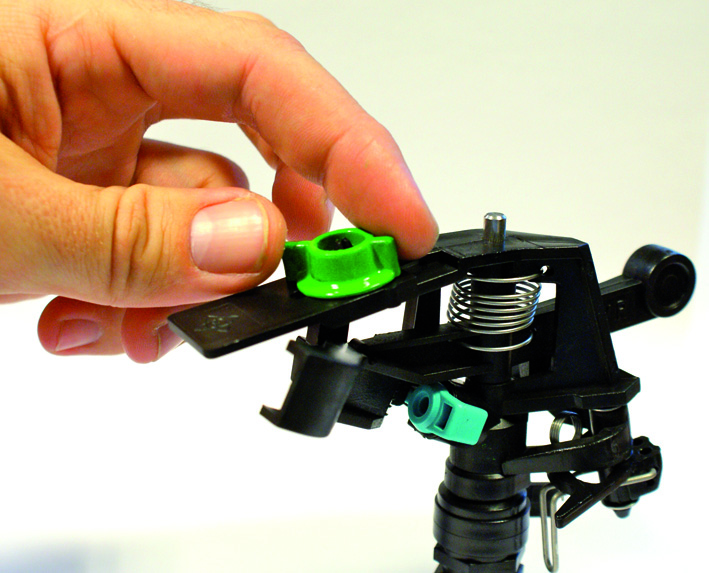

  • Adjustable deflector plate.

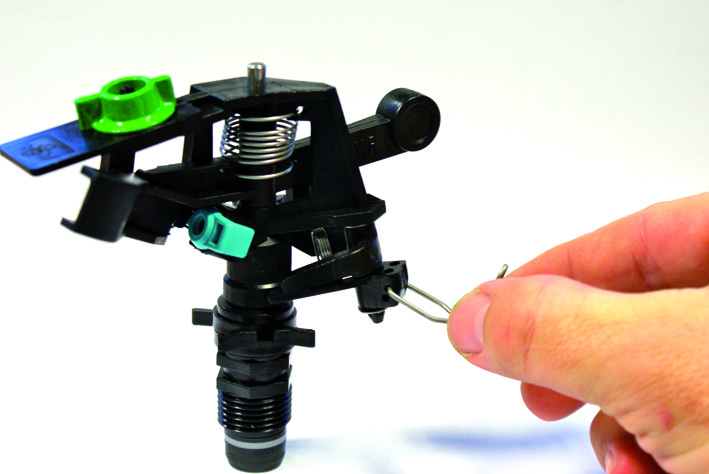

  • Irrigation area system controlled by rotating clips.

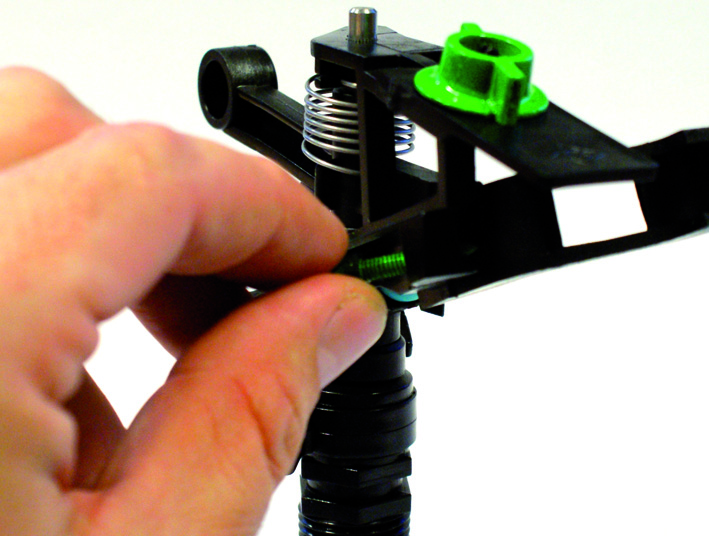

  • Adjustable jet breaker diffuser pin.
  • Its versatility and adaptability to all type of gardens make this model one of most common for home gardening.
  • This model is also used in low flow agricultural irrigation systems as a complementary part-circle model to VYR-26 and VYR-16.

Options

  • Available with a brass arm for faster and more consistent rotation (in areas with strong winds).
  • Self-compensating flow control valves of 2,5 BAR.
  • Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors.
  • Assembled as a "complete support kit" on a brass, aluminium or plastic spike.
  • Assembled as a "complete support kit" on an aluminium base.
