VYR-868

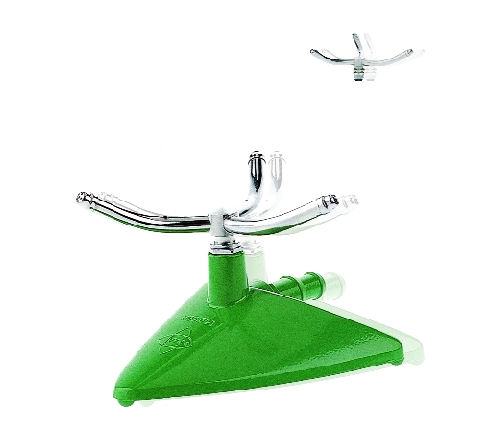

Rotative overhead sprinkler

Three-arm rotating sprinkler for gardening, agriculture, floriculture and greenhouses.

Get more information from your nearest distributor

Contact us now

Models

ASP VYR-868, 3 BRAZOS CON BASE DE ALUMINIO


Specifications

Reach: 4 - 7 m.
Flow: 360 - 1,044 l/h.
Working pressure: 0.5 - 3.5 bar.
Area: Circular.
Nozzles: A multi-jet nozzle.
Maximum stream height: 2 m.
Rotation time: irregular, depending on the pressure.
Uniformity coefficient higher than 90% in areas of 5x5R, 6x6T, 6x7T.

Dimensions

  • Height: 5.12 inches
  • Width: 4.72 inches
  • Weight: 0.49 lb.
  • Units per box: 10
  • Weight per box: 48.50 lb.

Applications

  • Public and private gardens.
  • Horticultural plantations, floriculture and fruit trees.

Features

  • Three-arm rotating sprinkler for gardening, agricultura, floriculture and greenhouses.
  • Connection of the 3/8” male rotating head, and connection of the spike with a 15 and 20 mm hose coupling.
  • Made of chrome-plated brass and copper.
  • Steel and rubber rotating joints.
  • Three rotating perforated arms and spray sprinklers.
  • Anti-sand filter.
  • This sprinkler is strong and durable enough to work for many years in urban gardens in tough conditions, caused by vandalism and impact from maintenance equipment.

Options

  • Adapter with reduction for 1/2" male.
  • Assembled as a "complete support kit" on an aluminium base.
  • Assembled as a "complete support kit" on a 1.3 or 0.7 m galvanized stake with microtube and connectors
