VYR-961 URBAN

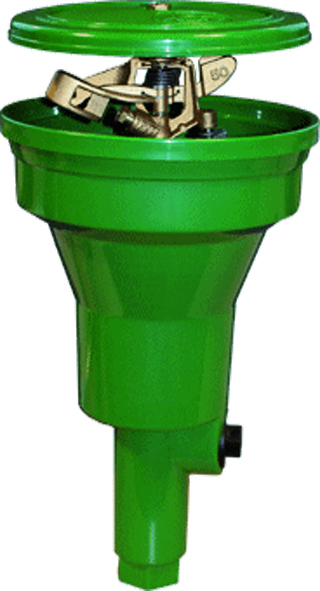

VYR-961 URBAN pop-up impact sprinkler

Super-resistant Pop-up impact-sprinkler  with female connection 3/4 "bottom and 1/2" female side.

Get more information from your nearest distributor

Contact us now

Models

POP-UP VYR-961 with SPRINKLER VYR-50 6 cm FULL CIRC.

POP-UP VYR-961 with SPRINKLER VYR-50 6 cm PART CIRCLE

POP-UP VYR-961 WITH SPRINKLER VYR-80 6 cm FULL CIRC.

POP-UP VYR-961 WITH SPRINKLER VYR-80 6 cm PART CIRCLE

POP-UP 3/4


Specifications

Reach: 9 - 15 m.
Flow: 250 - 1440 l/h.
Working pressure: 1.5 - 4 bar.
Area: Full or part circle.

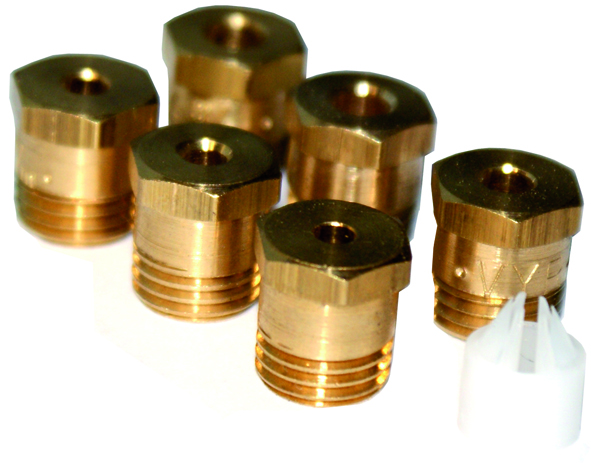

Nozzles: 6 models from 2.5 mm to 4.5 mm.
Trajectory angle: 28º.
Maximum stream height: 1.6 m.
Rotation time: 360º between 1 and 4 minutes.
Uniformity coefficient higher than 90% in areas of
12x12R, 13x13T, 13x14T.

Dimensions

  • Height: 11.02 inches
  • Width: 7.09 inches
  • Weight: 1.62 lb.
  • Units per box: 10
  • Weight per box: 16.53 lb.

Applications

  • VYR-961 impact sprinklers are designed and manufactured to offer the best durability and resistance to the tough conditions of urban public gardens and commercial areas, being highly resistant to vandalism and heavy mowing equipment.
  • They are suitable for urban parks and residential and commercial areas, as well as for residential gardens and recreation areas.

Features

  • Super-resistant pop-up impact sprinkler.
  • Pop-up shaft reinforced with brass rings.
  • 3/4" lower female connection and 3/4" side female connection.
  • Made of plastic, brass and stainless steel.
  • Teflon, steel and rubber rotation joints.
  • Stainless steel spring with continuous tension.
  • Easily adjustable irrigation area thanks to its internal clip system.
  • Wide range of brass nozzles with excellent distribution range.
  • Removable grit filter for maintenance cleaning.
  • Anti-sand rubber seal.

Options

  • Swing pipes for network connection.
  • Maintenance tools.
  • Models with built-in electrically operated valve (24 VAC).

This product is not downloaded available
