VYR-970 CANCHA

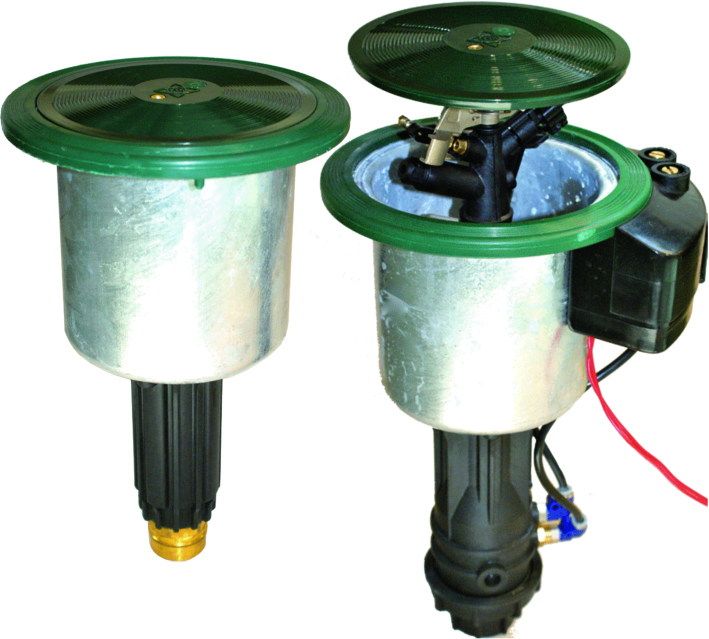

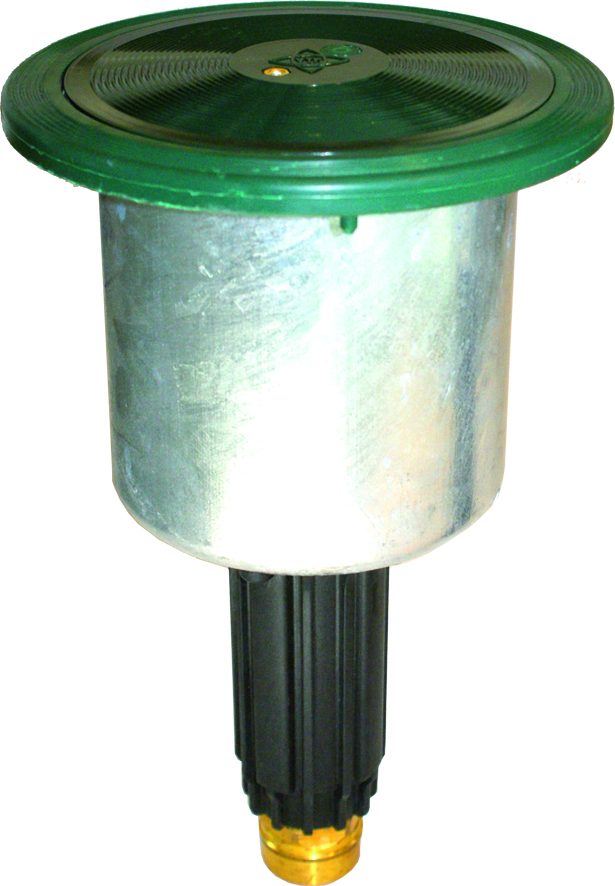

Pop-Up Impact Sprinkler V-970

VYR-970 SPORT impact sprinklers are designed and manufactured to offer the best irrigation quality and durability in public gardens and recreation areas.

Get more information from your nearest distributor

Contact us now

Models

VYR-970 Circular 2 boq.

VYR-970 AV Circular 2 boq.

VYR-970 Sectorial 2 boq.

VYR-970 AV Sectorial 2 boq.

VYR-970 Circular 3 boq.

VYR-970 AV Circular 3 boq.


Specifications

Reach: 14 - 21 m.
Flow: 2,600 - 20,600 l/h.
Working pressure: 3 - 6 bar.
Area: Full or part circle.
Nozzles: Two or three nozzles (depending on the model) made up of short, medium and long reach jets with diffuser pin.
Trajectory angles: 28º.
Maximum stream height: 3.2 m.
Rotation time: 360º between 1 and 4 minutes (adjustable)
Uniformity coefficient higher than 90% in areas of 20x20R, 22x22T, 22x23T.

Dimensions

  • Height: 13.39 inches
  • Width: 7.09 inches
  • Weight: 4.63 lb.
  • Units per box: 2
  • Weight per box: 9.26 lb.

Applications

  • VYR-970 SPORT impact sprinklers are designed and manufactured to offer the best irrigation quality and durability in public gardens and recreation areas.
  • Suitable for tennis courts (clay and grass).

Features

  • "SPORT series" pop-up impact sprinkler.
  • 1" female connection.
  • Made of plastic and stainless steel.
  • Teflon, steel and rubber rotation joints.
  • Stainless steel spring with continuous tension.
  • Easily adjustable irrigation area thanks to its internal clip system.
  • Wide range of plastic nozzles.
  • Excellent distribution throughout its reach.
  • Removable grit filter for maintenance cleaning.
  • Anti-sand rubber seal.
  • Spring with tension regulation system.

Options

  • Swing pipes for network connection.
  • Maintenance tools.
  • Different kinds of cover to match all types of terrain.

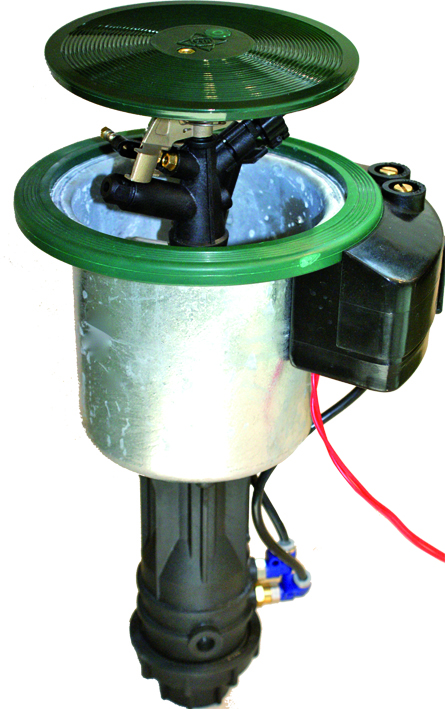

  • AC models with built-in electrically operated valve (24 VAC, 12 VDC, LATCH) and with 2 or 3 nozzles
