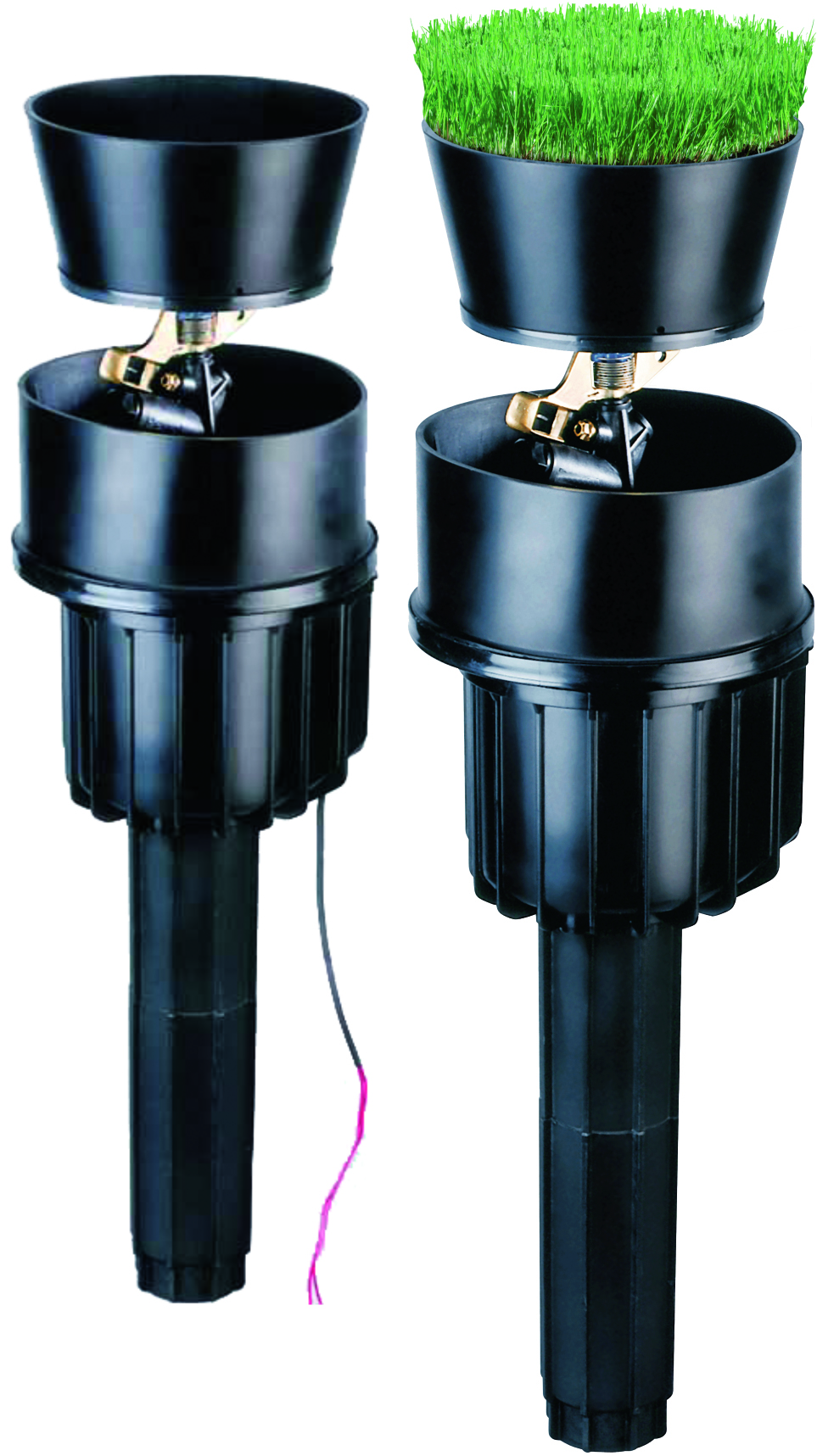

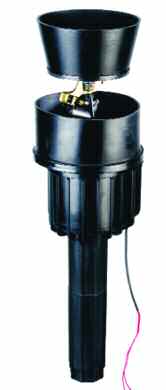

VYR-973 COLISEO

Pop-Up Impact Sprinkler

Sport Series pop-up impact sprinklers.
1 1/2" female connection.

Get more information from your nearest distributor

Contact us now

Models

VYR-973 Circular

VYR-973 Sectorial

VYR-973 AV Circular

VYR-973 AV Sectorial


Specifications

Reach: 19 - 33 m.
Flow: 5,000 - 20,500 l/h.
Working pressure: 3 - 6 bar.
Area: Full or part circle.
Nozzles: Two or three nozzles (depending on the model) made up of short, medium and long reach jets with diffuser pin.
Trajectory angles: 22º.
Maximum stream height: 3.2 m.
Rotation time: 360º between 1 and 4 minutes (adjustable)
Uniformity coefficient higher than 90% in areas of 25x25T, 25x27T, 30x30T, 32x32T.

Dimensions

  • Height: 49 y 66 cm.
  • Width: 9.45 inches
  • Weight: 4400 y 5000 gr.
  • Units per box: 1
  • Weight per box: kg.

Applications

  • SPORT Series impact sprinklers are designed and manufactured to offer the best irrigation quality and durability in sport fields.

Features

  • Sport Series pop-up impact sprinklers.
  • 1 1/2" female connection.
  • Made of plastic and stainless steel.
  • Teflon, steel and rubber rotation joints.
  • Stainless steel spring with continuous tension.
  • Easily adjustable irrigation area thanks to its internal clip system.
  • Wide range of plastic nozzles.
  • Excellent distribution throughout its reach.
  • Removable grit filter for maintenance cleaning.
  • Anti-sand rubber seal.
  • Spring with tension regulation system.

Options

  • Swing pipes for network connection.
  • Maintenance tools.
  • Different kinds of cover to match all types of terrain.
  • AC models with built-in electrically operated valve (24 VAC, 12 VDC, LATCH) and with 2 or 3 nozzles.
