VYR-980 OLIMPIA II

Pop-Up Sprinkler Gun

Part circle pop-up gun sprinkler with piston-controlled rotation system lubricated with water. Larger range distance and lower flow than our previous model version VYR-977.

Get more information from your nearest distributor

Contact us now

Models

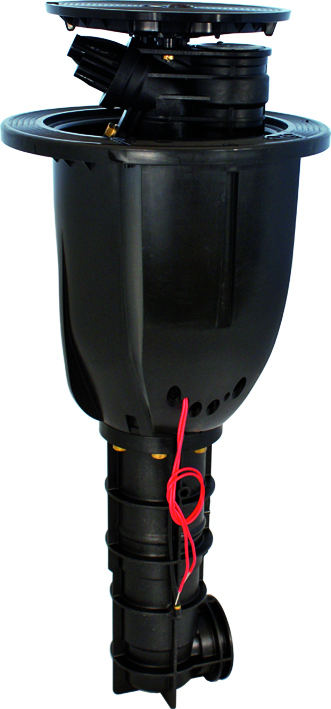

VYR-980 2" , 24Vac VALV, 68 cm

  • Weight: 19.84 lb.
  • Units per box: 1
  • Weight per box: 19.84 lb.

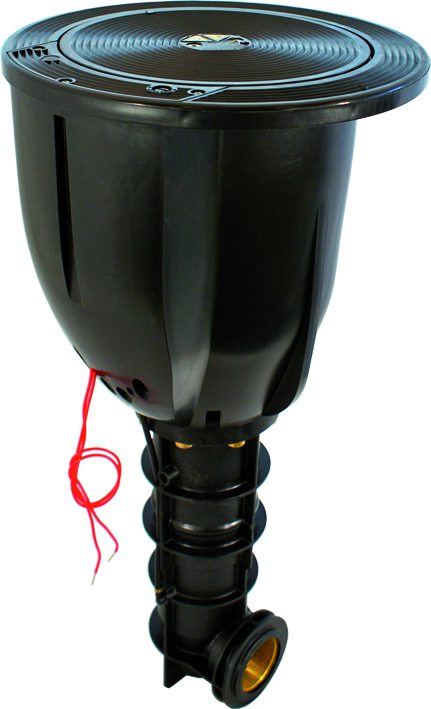

VYR-980 2" , 24Vac VALV, 68 cm + RUBBER CAP

  • Weight: 20.94 lb.
  • Units per box: 1
  • Weight per box: 20.94 lb.

VYR-980 2" , 24Vac VALV, 68 cm + SECTOR SCOUT

  • Weight: 20.94 lb.
  • Units per box: 1
  • Weight per box: 20.94 lb.

VYR-980 OLIMPIA II + RUBBER CAP + SECTOR SCOUT , 24Vac VALV, 68 cm

  • Weight: 2.20 lb.
  • Units per box: 1
  • Weight per box: 22.05 lb.

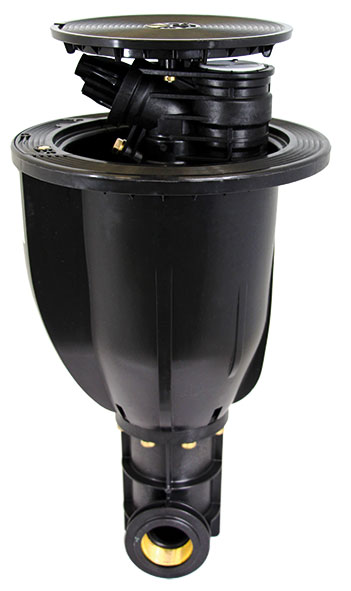

VYR-980 OLIMPIA II , 53 cm (SHORT, W/O-VALV)

  • Weight: 16.53 lb.
  • Units per box: 1
  • Weight per box: 16.53 lb.

VYR-980 OLIMPIA II + RUBBER CAP, 53 cm (SHORT, W/O-VALV)

  • Weight: 17.64 lb.
  • Units per box: 1
  • Weight per box: 17.64 lb.

Specifications

Range distance: 34-54 m.
Flow: 23,000 - 65,000 l/h.
Working pressure: 4 - 8 BAR.
Coverage area: Full or part circle.
Boquillas: A single nozzle with 5 outlets: 16, 20 & 24 mm.
Trajectory angles: 23º.
Maximum stream height: 6,2 m.
Rotation time: 360º between 50 and 120 seconds (adjustable)
Uniformity coefficient higher than 85% in areas of 50x50R, 55x55T, 55x55R, 50x65T.

Dimensions

  • Height: 60 o 64 cm.
  • Width: 39 o 30 cm.
  • Weight: 19.84 lb.
  • Units per box: 1
  • Weight per box: 19.84 lb.

Applications

  • Sports fields of natural or artificial turf or sand: football, rugby, baseball, horse riding, golf, etc.
  • Large commercial areas and urban parks.

Features

  • Part circle pop-up gun sprinkler with piston-controlled rotation system lubricated with water. Larger range distance and lower flow than our previous model version VYR-977.
  • In-head built-in solenoid valve with ON-OFF-AUTO control from the outside cover-ring. (24Vac standart)
  • Multi-jet nozzle with 5 outlets for a perfect coverage and uniformity of distribution.

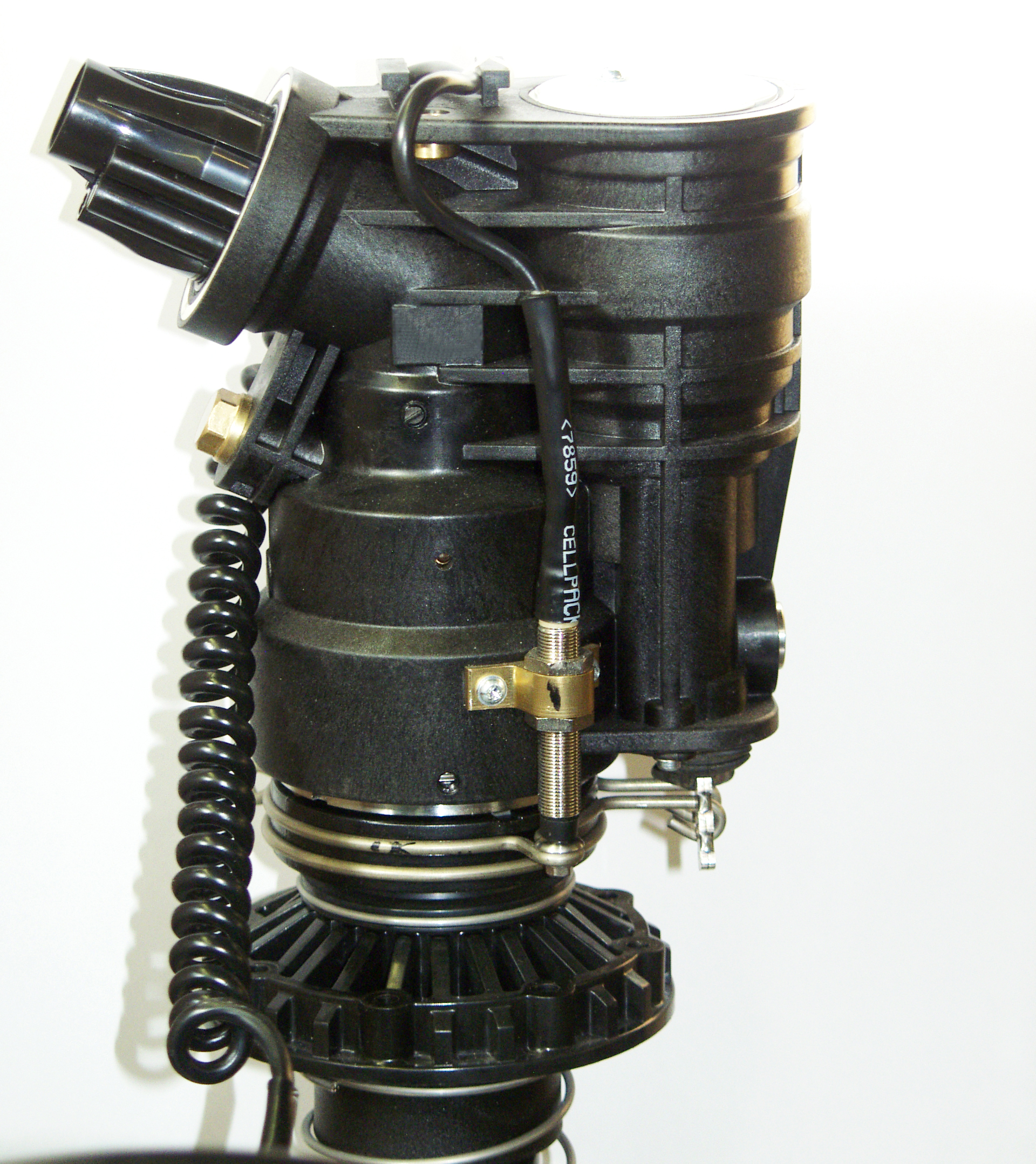

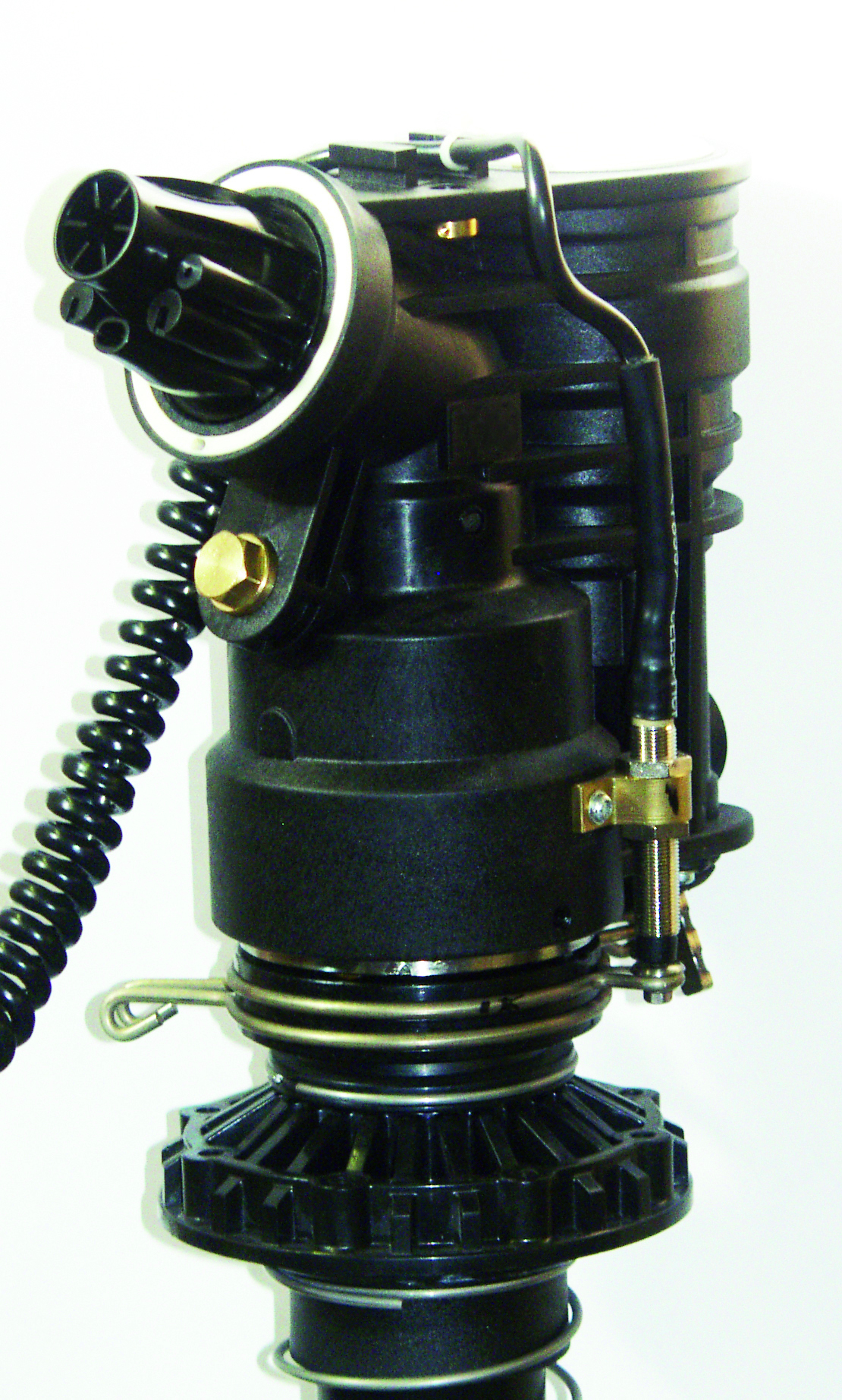

  • Optinoal “Sector-Scout” system to count the number of sectors for cycle irrigation (only by using special cycle controller).
  • Specially designed for perimetral irrigation of stadiums without any need of in-field maintenance or reparing.
  • Lateral inlet of 2” female threaded with brass inserted ring.
  • Made of brass, stainless steel and Delrin plastic.
  • Special plastics and rubber rotation joints.
  • Built-in check valve (8.8 m water column).
  • Removable grit filter for maintenance cleaning.

Options

  • Cycle counter system “Sector Scout”.
  • X-Force valve-boxes.
  • Maintenance tolls.
